Series navigator
Choose a series to compare its models
Series configurator
Select a model and inspect its CAD resources
Choose a row on the left. The preview, model details and available files update on the right.
| Model | Gripper type | Series size range | CAD | |
|---|---|---|---|---|
| Long-stroke parallel gripping | Ø16–Ø125 | STEP · PDF |
MHS3

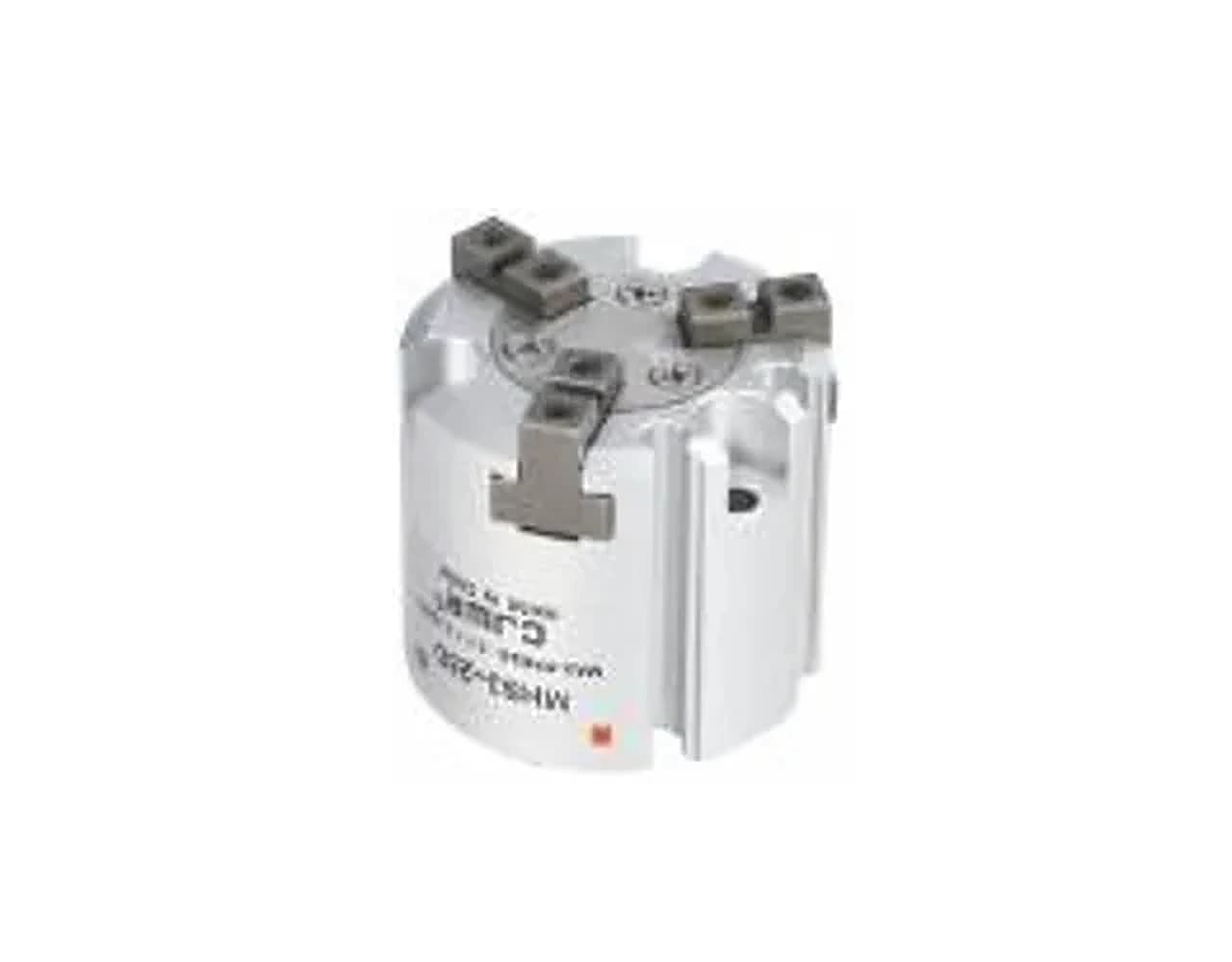

MHS3 Long-Stroke Parallel Pneumatic Gripper
Verified 3D CAD model on request. Confirm the exact configuration before engineering use.
Gripper type
Long-stroke parallel gripping
Series size range
Ø16–Ø125
Actuation
Pneumatic, configuration dependent
Mounting
Select according to application drawing
Model index
32 models
SC32×50
sc series
A double-acting standard cylinder with a 32 mm bore and 50 mm stroke for general automation.
SDA20×30
sda series
A compact double-acting cylinder with a 20 mm bore and 30 mm stroke for space-limited installations.
SC40×100
sc series
A 40 mm bore and 100 mm stroke standard cylinder for higher-force automation applications.
4V210-08
4v series
A 5-port directional solenoid valve with 1/8 in ports for double-acting cylinder control.
4V310-10
4v series
A 5-port, 3/8 in solenoid valve for higher flow and faster response in larger pneumatic circuits.
AC2000-02
ac aw series
A compact filter-regulator-lubricator combination with a 1/4 in port for standard pneumatic systems.
AW3000-03
ac aw series
A 3/8 in filter regulator with 5 μm filtration and stable pressure control.
PC8-02
pc pl series
A straight push-in fitting for 8 mm tubing and 1/4 in threads, designed for fast and reliable installation.
PL8-02
pc pl series
A 90-degree push-in fitting for 8 mm tubing and 1/4 in threads where compact routing is important.
YAM-20
yam series
A 3/4 in oil mist separator for removing oil aerosol, water and fine particles from compressed air.
MHZ2
mhz2 series
A compact two-finger parallel gripper for precise part handling, assembly and automatic loading.
MHC2
mhc2 series
A standard angular gripper for parts that need open jaw clearance during loading and unloading.
MHY2
mhy2 series
A 180-degree angular gripper for applications that need wide, unobstructed jaw opening.
MHL2
mhl2 series
A wide-opening parallel gripper for larger workpieces and compact material-handling cells.
MHF2
mhf2 series
A low-profile pneumatic gripper for restricted machine spaces and lightweight automated handling.
MRHQ
mrhq series
A rotary gripper that combines component gripping and rotational positioning in one compact unit.
MHS2
mhs2 series
A round-body parallel gripper for flexible handling, assembly and general machine automation.
MHS3
mhs3 series
A long-stroke parallel gripper for wider workpiece access and varied component sizes.
MHS4
mhs4 series
A compact parallel gripper for dependable two-finger handling in automated machinery.
HFY
hfy series
A Y-type pneumatic gripper for centered part handling in compact automated mechanisms.
HFR
hfr series
A 180-degree angular gripper for wide-access part handling and fixture clearance.
MCHA
mcha series
A 30-degree angular gripper for controlled finger clearance in compact assembly equipment.
MXS
mxs series
A compact guided cylinder with cross-roller support for accurate linear motion and tooling guidance.
MXQ
mxq series
A guided cylinder with recirculating-ball support for stable, repeatable movement in automation equipment.
MXH
mxh series
A small guided cylinder for compact transfer, positioning and assembly machinery.
HFZ
hfz series
A guided pneumatic cylinder for stable parallel travel in fixtures and handling mechanisms.
HFK
hfk series
A guide-rod pneumatic cylinder for consistent linear movement in compact automation equipment.
HFZL / HFKL
hfzl hfkl series
Compact guided cylinder options for lightweight automation and fixture applications.
6SV100
6sv series
A size 100 directional solenoid valve for configurable pneumatic control circuits and manifold assemblies.
6SV200
6sv series
A size 200 directional solenoid valve for configurable pneumatic control circuits and manifold assemblies.
6SV300
6sv series
A size 300 directional solenoid valve for configurable pneumatic control circuits and manifold assemblies.
6SV400
6sv series
A size 400 directional solenoid valve for configurable pneumatic control circuits and manifold assemblies.
