AC2000-02 Air Preparation Unit

A compact filter-regulator-lubricator combination with a 1/4 in port for standard pneumatic systems.

Request a quoteCAD resourcesCAD resources

Product preview

Source image

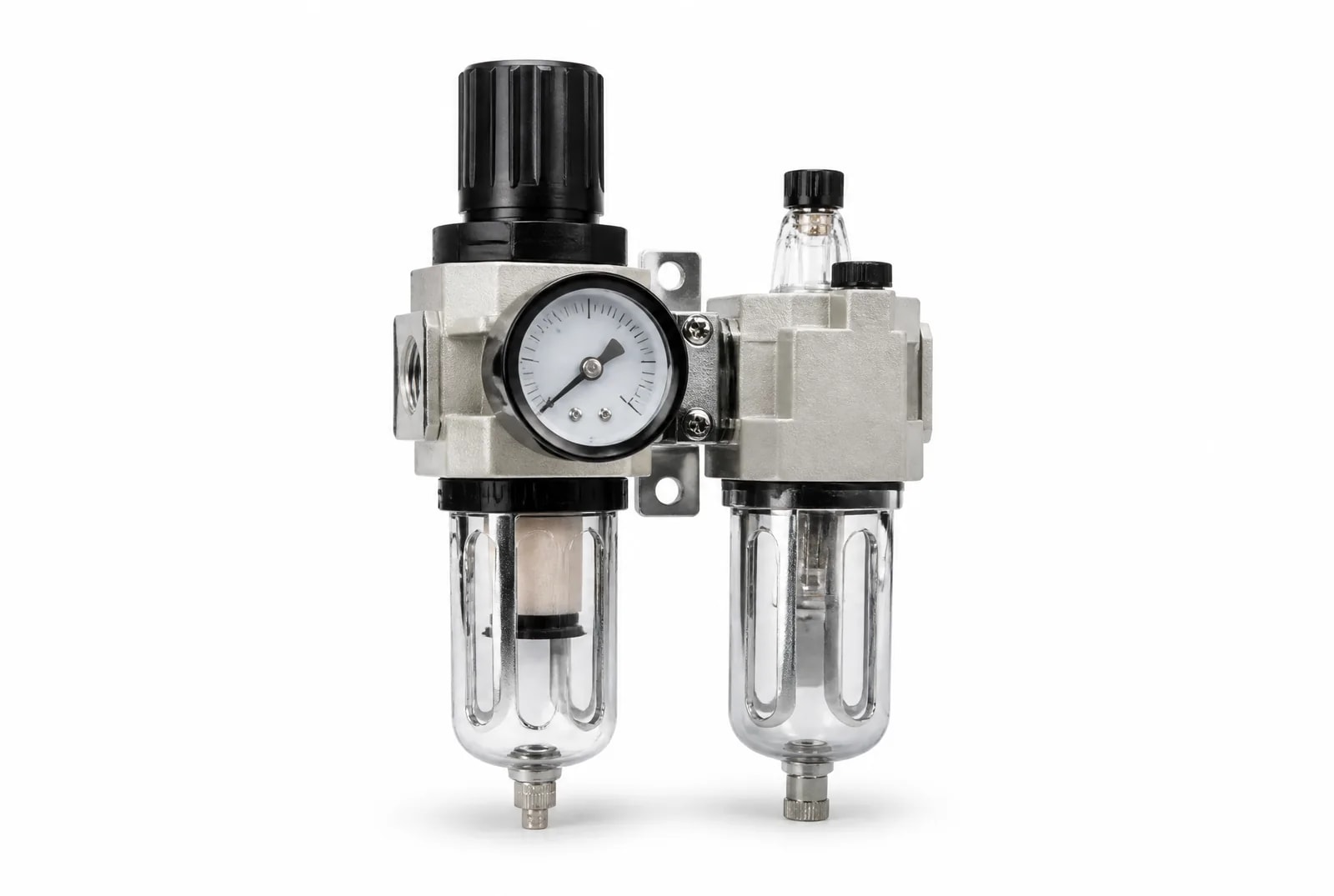

AC2000-02 AC2000-02 Air Preparation Unit
Source product image · request a verified 3D CAD file for your confirmed configuration

Product overview

Designed for dependable machine building

The AC2000-02 combines filtration, pressure regulation and lubrication in one modular air preparation unit. A visible bowl and pressure gauge simplify routine maintenance and commissioning.

Technical specifications

Updated 2026-09-01
Port size1/4 in
Pressure range0.05–0.85 MPa
Filtration40 μm
Max. pressure1.0 MPa
Temperature-5 to +60 °C
DrainManual / automatic

Replacing an SMC or Festo part?

We confirm mounting pattern, port thread, stroke and sensor groove before quoting.

Check compatibility

Engineering details

Features and applications

Key features

  • +Filtration, regulation and lubrication in one unit
  • +Transparent bowl for quick inspection
  • +Integrated pressure gauge
  • +Modular installation and maintenance

Typical applications

  • +Machine air preparation
  • +Assembly lines
  • +General factory automation
