HFK
Factory-supplied line · CJWR
A guide-rod pneumatic cylinder for consistent linear movement in compact automation equipment.
Product overview
The HFK family provides guided pneumatic movement for applications that need stable cylinder travel with a compact, machine-friendly mounting arrangement.
| Guide design | Guide-rod cylinder |
|---|---|
| Series size range | Ø6–Ø40 |
| Motion | Guided linear pneumatic travel |
| Mounting | Select according to application drawing |
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details
CAD download center
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.
Complete selection data

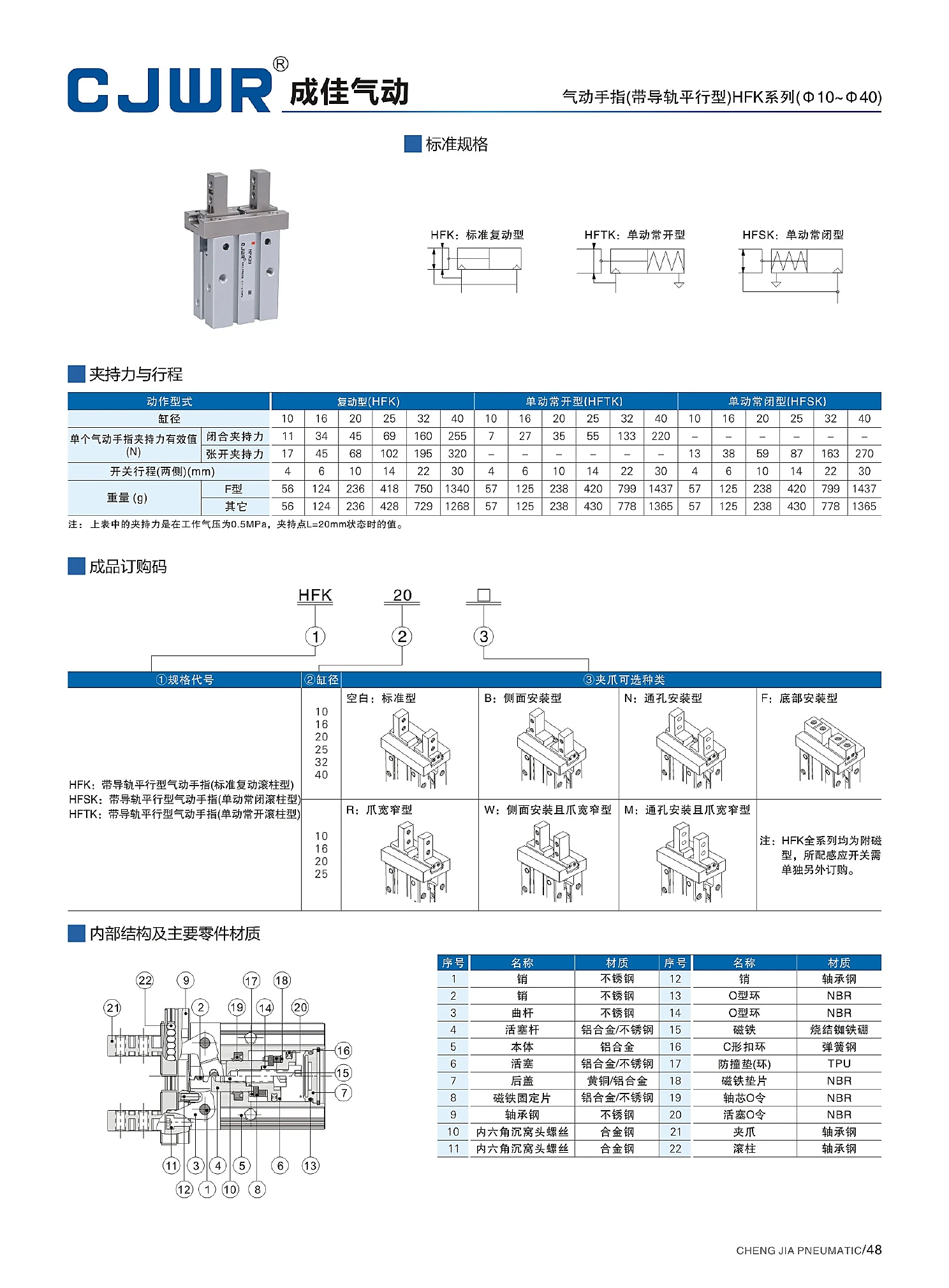

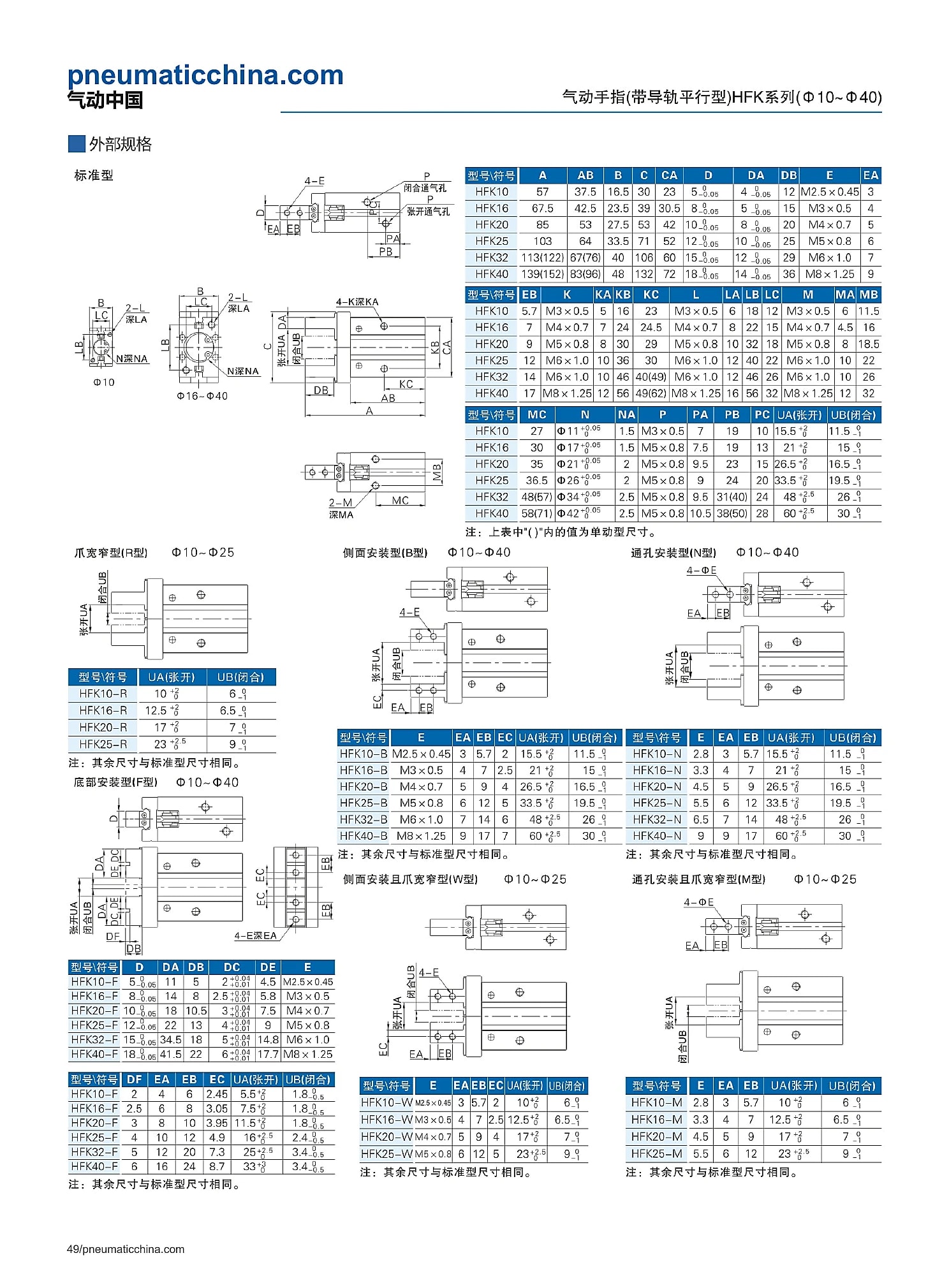

Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
System selection
A compact guided cylinder with cross-roller support for accurate linear motion and tooling guidance.
A guided cylinder with recirculating-ball support for stable, repeatable movement in automation equipment.
A small guided cylinder for compact transfer, positioning and assembly machinery.
A guided pneumatic cylinder for stable parallel travel in fixtures and handling mechanisms.
