MCHA
Factory-supplied line · CJWR
A 30-degree angular gripper for controlled finger clearance in compact assembly equipment.
Product overview
The MCHA family supports controlled angular gripping in compact automation layouts. Its 30-degree finger movement suits tasks where moderate clearance and repeatable handling are required.
| Gripper type | 30° angular gripping |
|---|---|
| Series size range | Ø12–Ø32 |
| Actuation | Pneumatic, configuration dependent |
| Mounting | Select according to application drawing |
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details
CAD download center
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.
Complete selection data

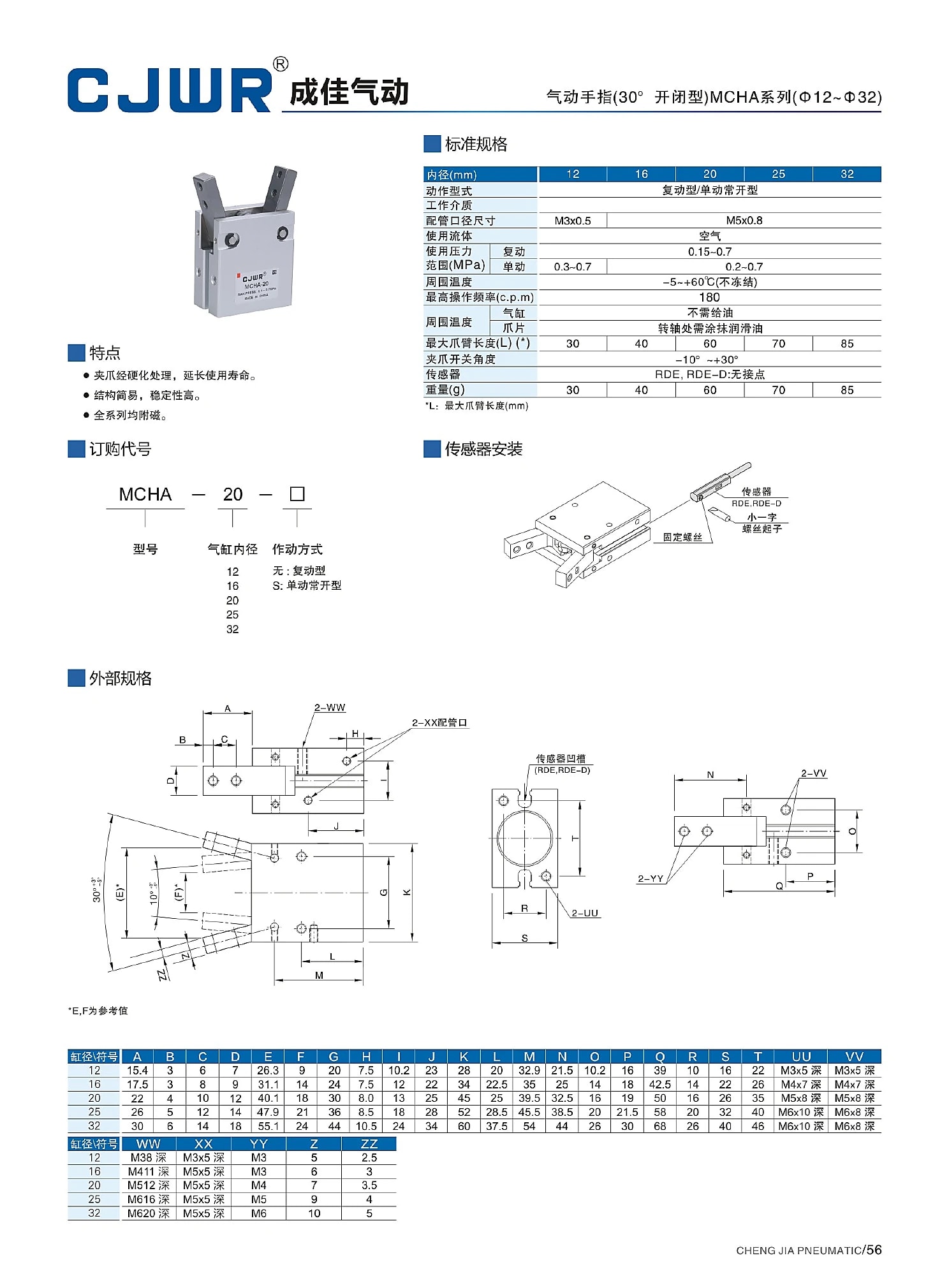

Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
