MHS2
Factory-supplied line · CJWR
A round-body parallel gripper for flexible handling, assembly and general machine automation.
Product overview
The MHS2 family offers parallel jaw motion in a round-body form factor. It supports a broad range of workpiece-handling configurations when a conventional compact gripper body is preferred.
| Gripper type | Parallel, round-body gripping |
|---|---|
| Series size range | Ø16–Ø63 |
| Actuation | Pneumatic, configuration dependent |
| Mounting | Select according to application drawing |
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details

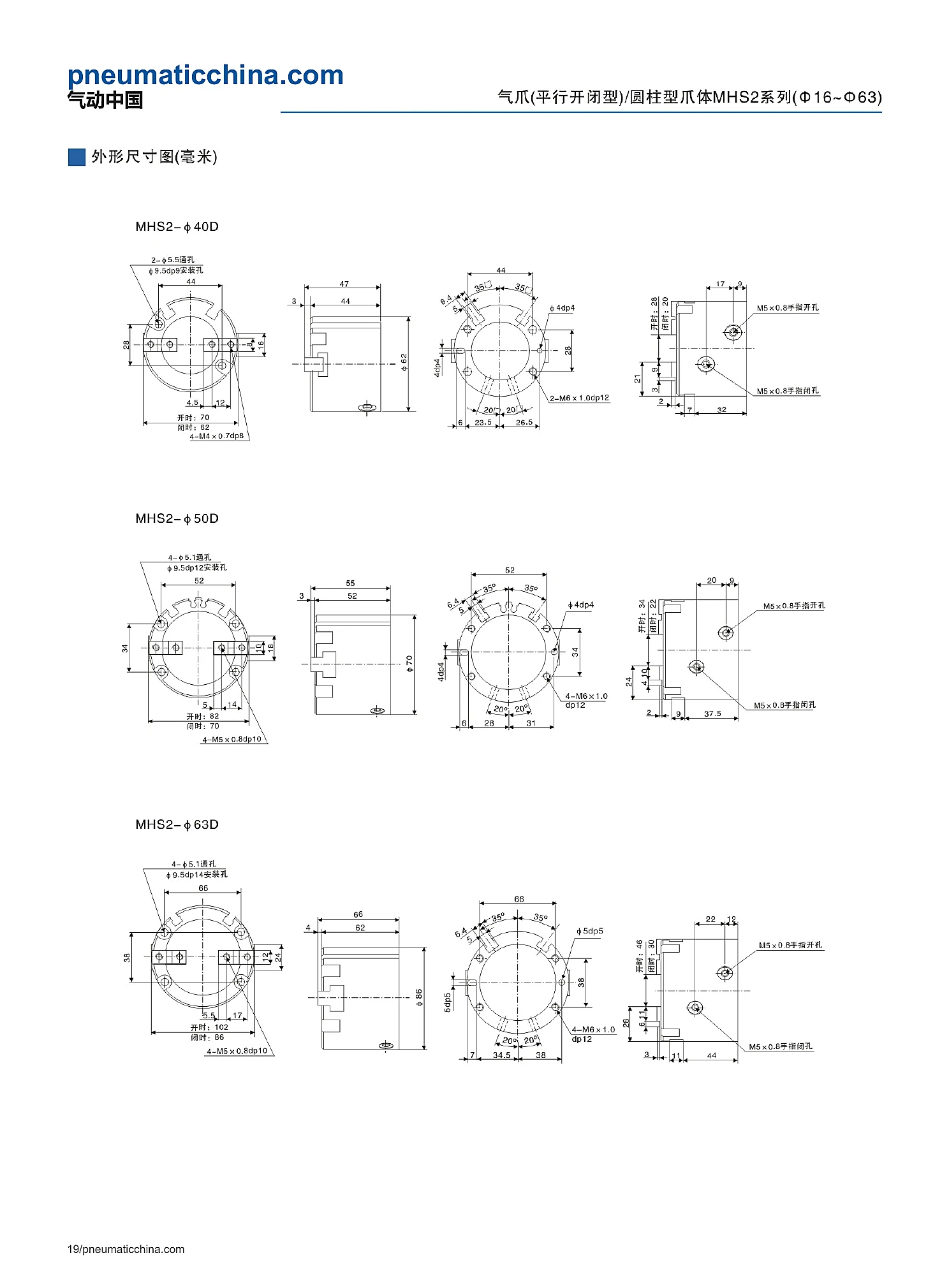

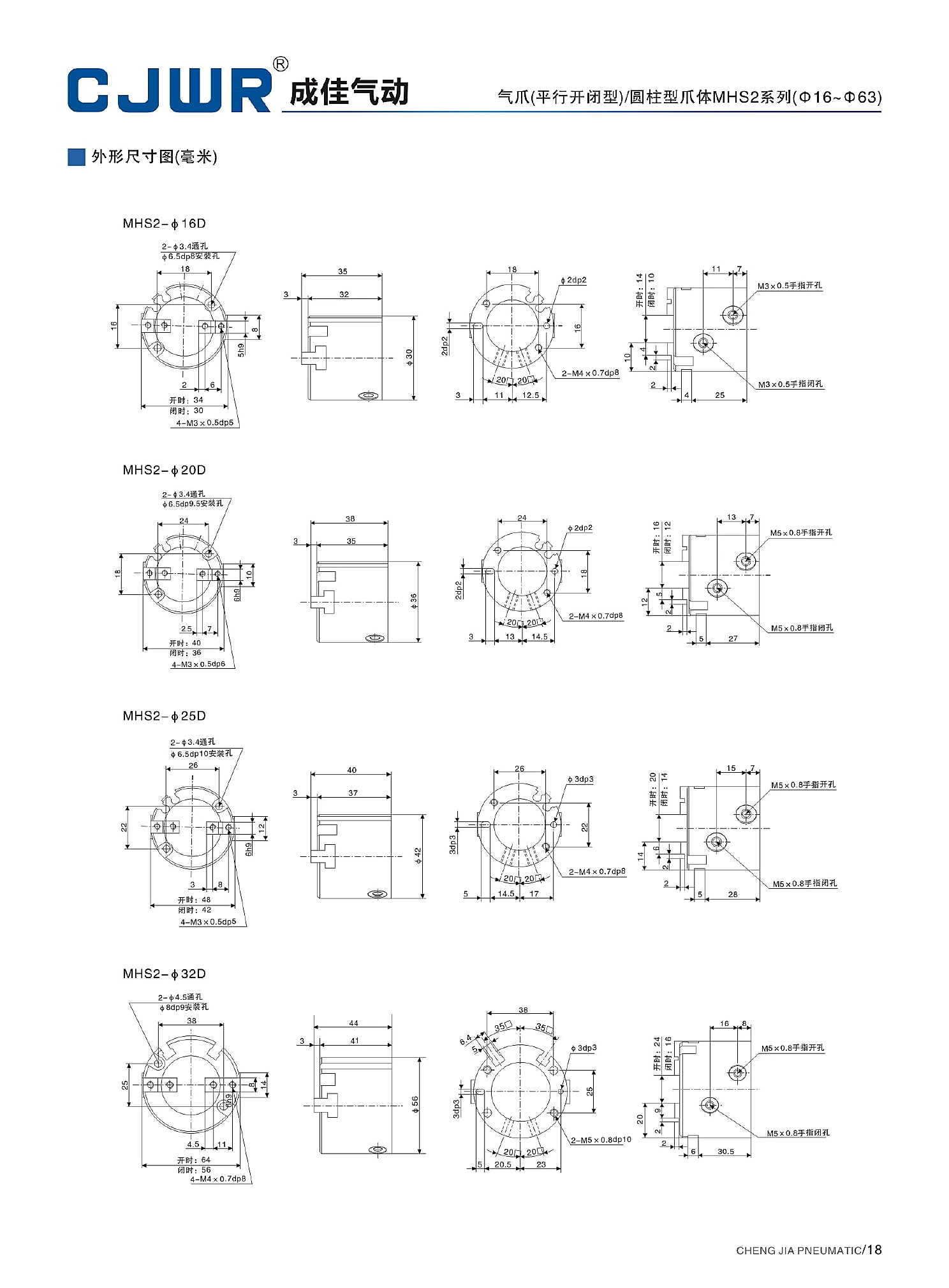

CAD download center
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.

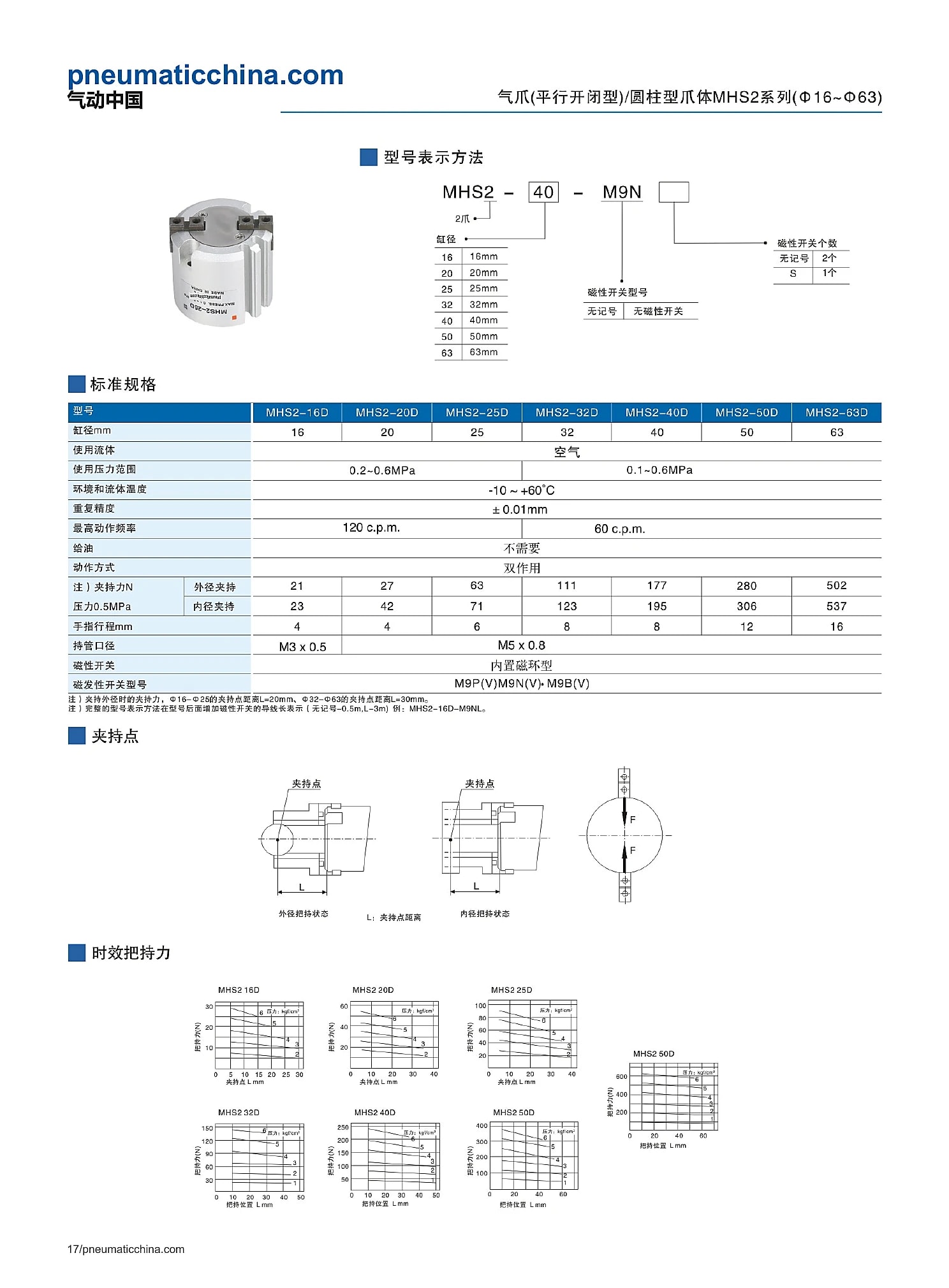

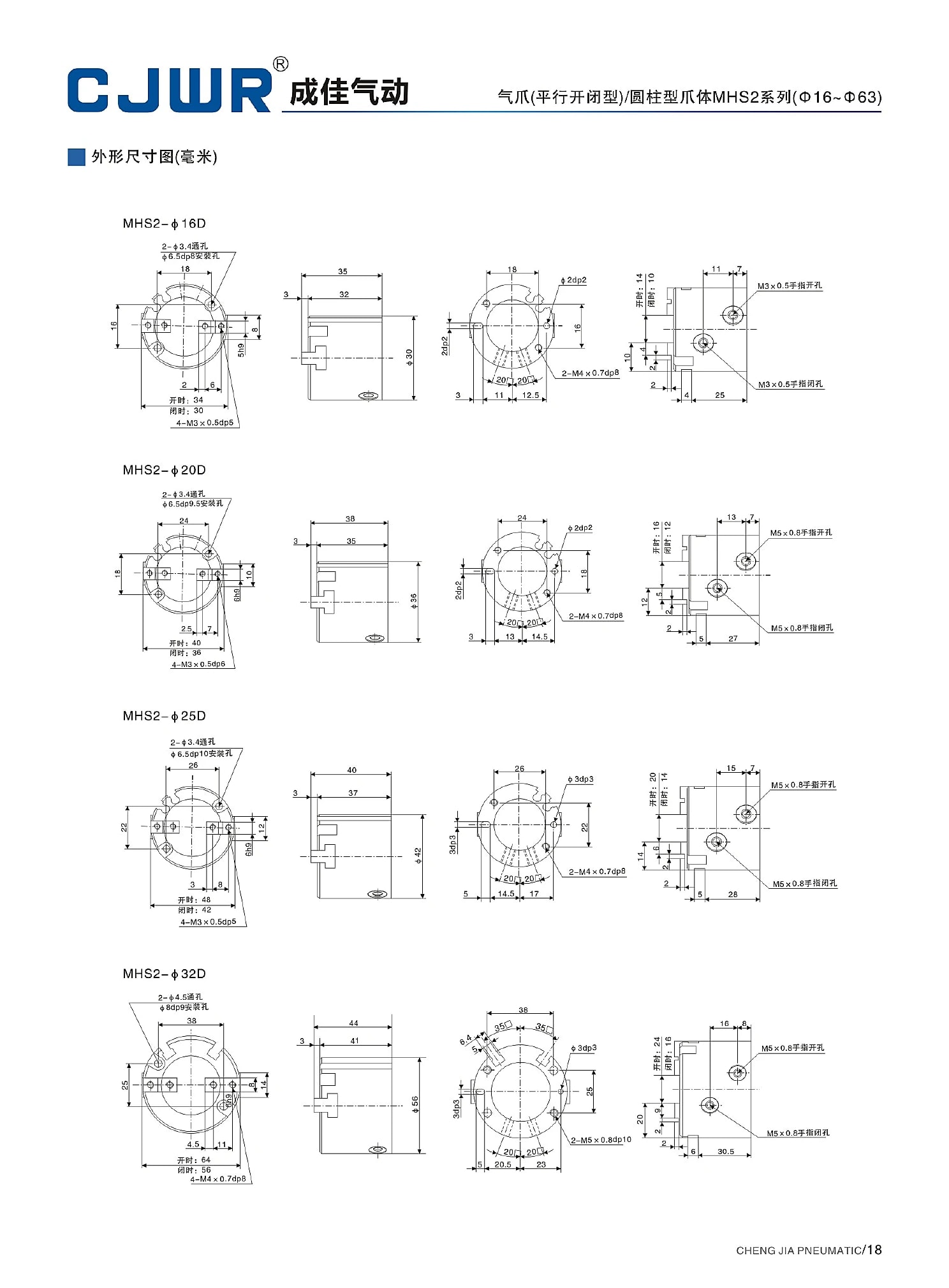

Complete selection data
Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
Technical FAQ
Yes. Send the required model, jaw style and application details. Our team will confirm the suitable configuration and available CAD format.
System selection
A compact two-finger parallel gripper for precise part handling, assembly and automatic loading.
A standard angular gripper for parts that need open jaw clearance during loading and unloading.
A 180-degree angular gripper for applications that need wide, unobstructed jaw opening.
A wide-opening parallel gripper for larger workpieces and compact material-handling cells.
