MXQ
Factory-supplied line · CJWR
A guided cylinder with recirculating-ball support for stable, repeatable movement in automation equipment.
Product overview
The MXQ family provides pneumatic motion with recirculating-ball guidance for applications that need compact, repeatable linear travel and a practical mounting platform.
| Guide design | Recirculating-ball guide |
|---|---|
| Series size range | Ø6–Ø25 |
| Motion | Guided linear pneumatic travel |
| Mounting | Select according to application drawing |
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details
CAD download center
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.
Complete selection data

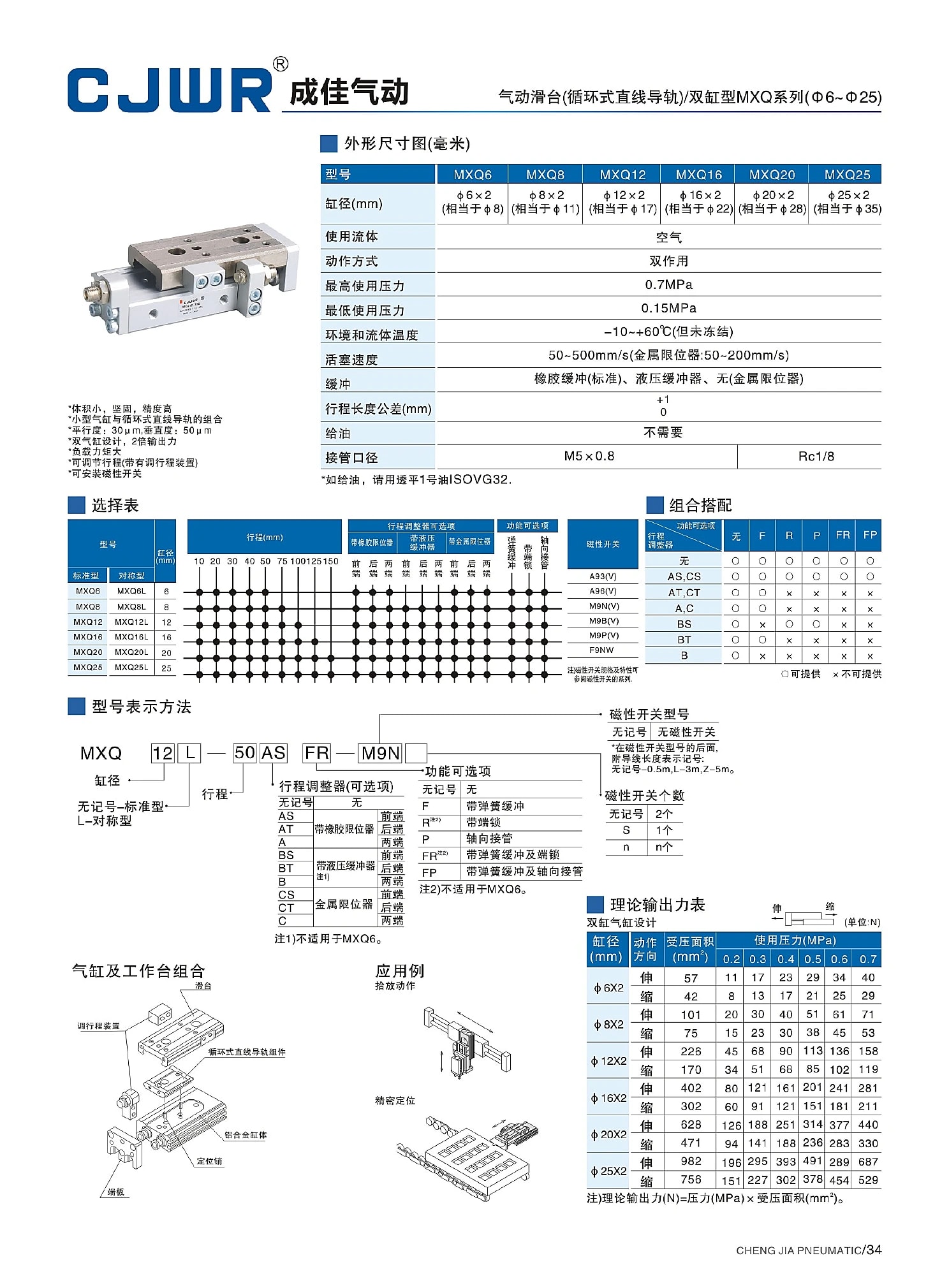

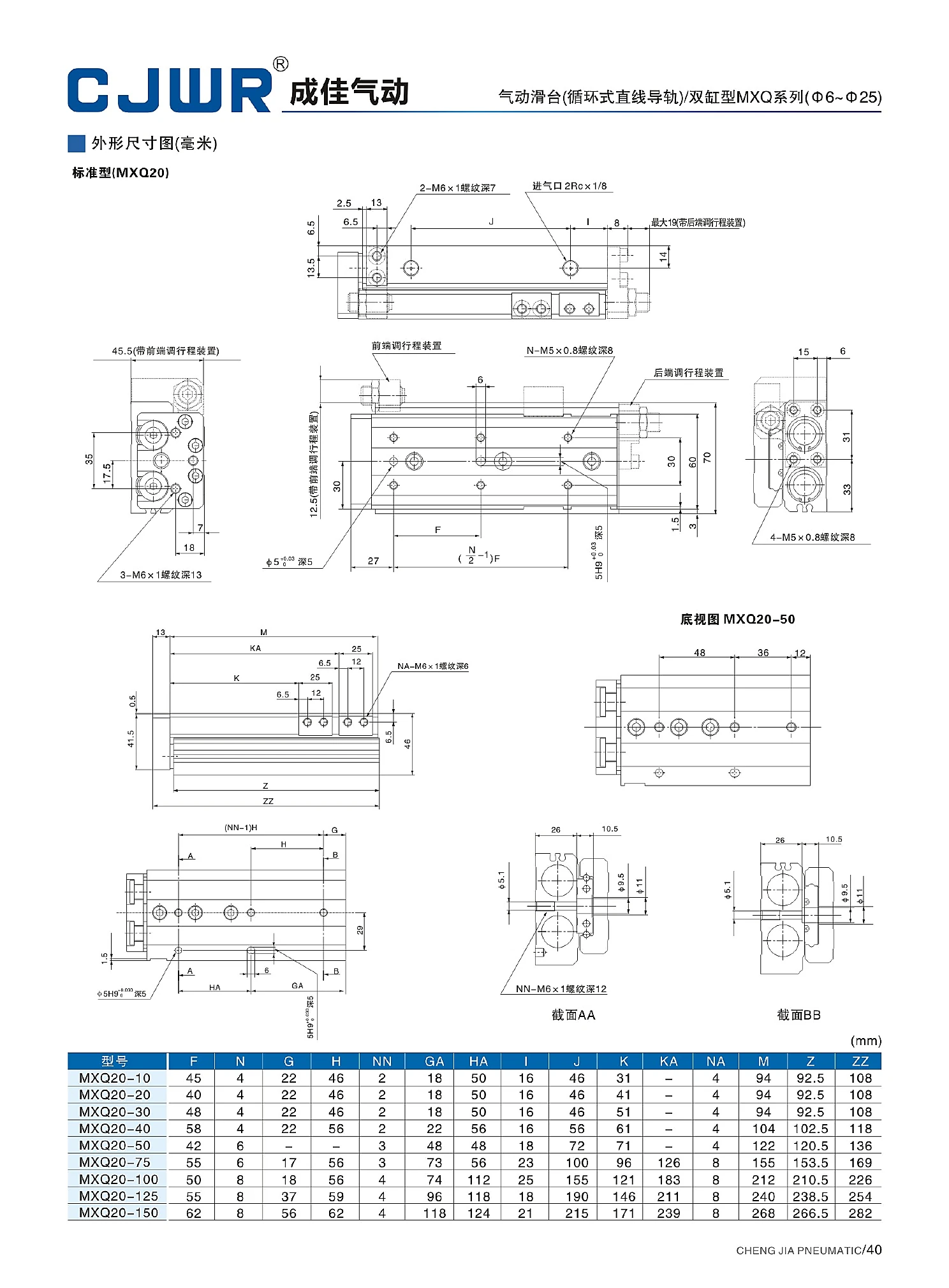

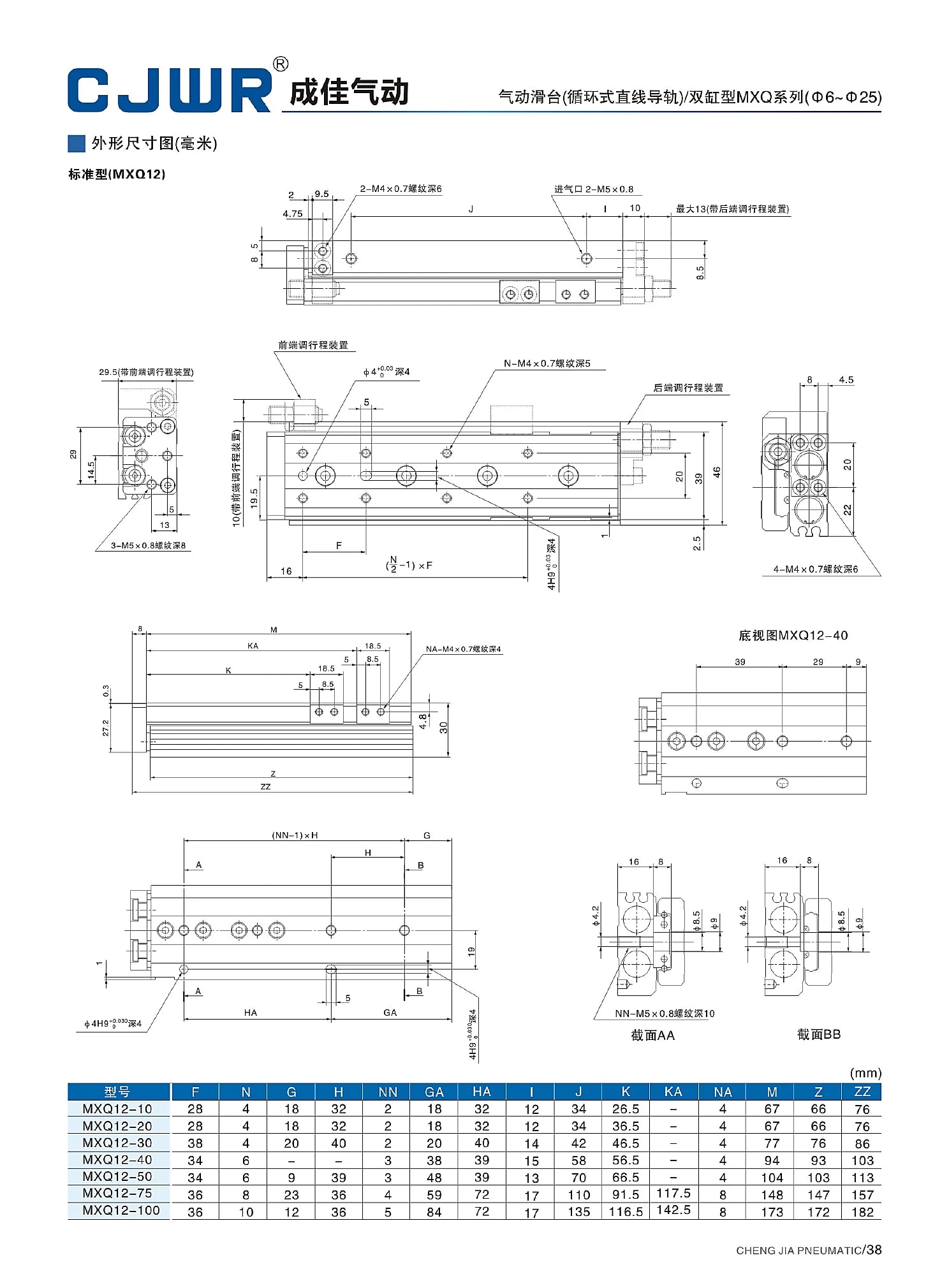

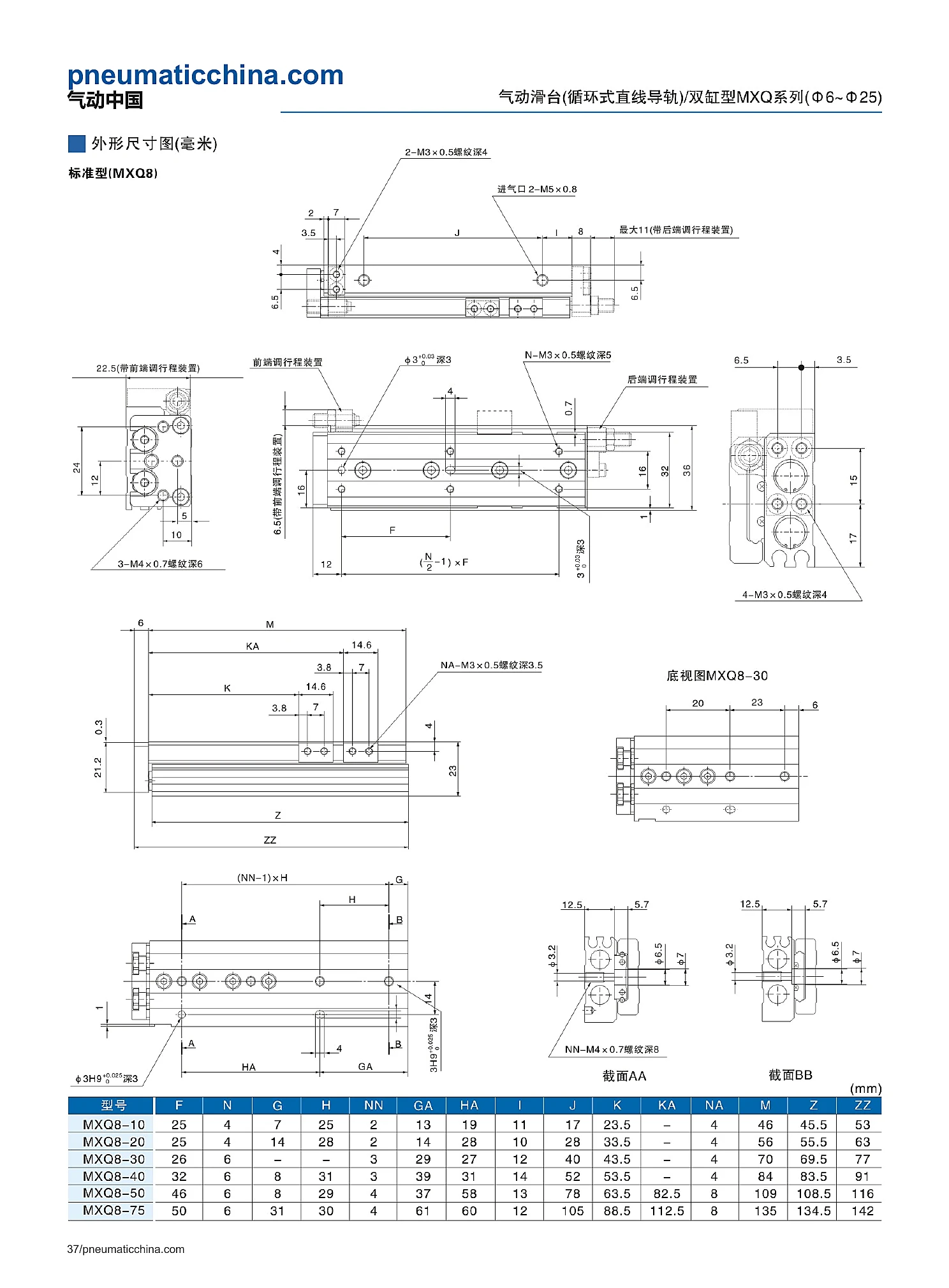

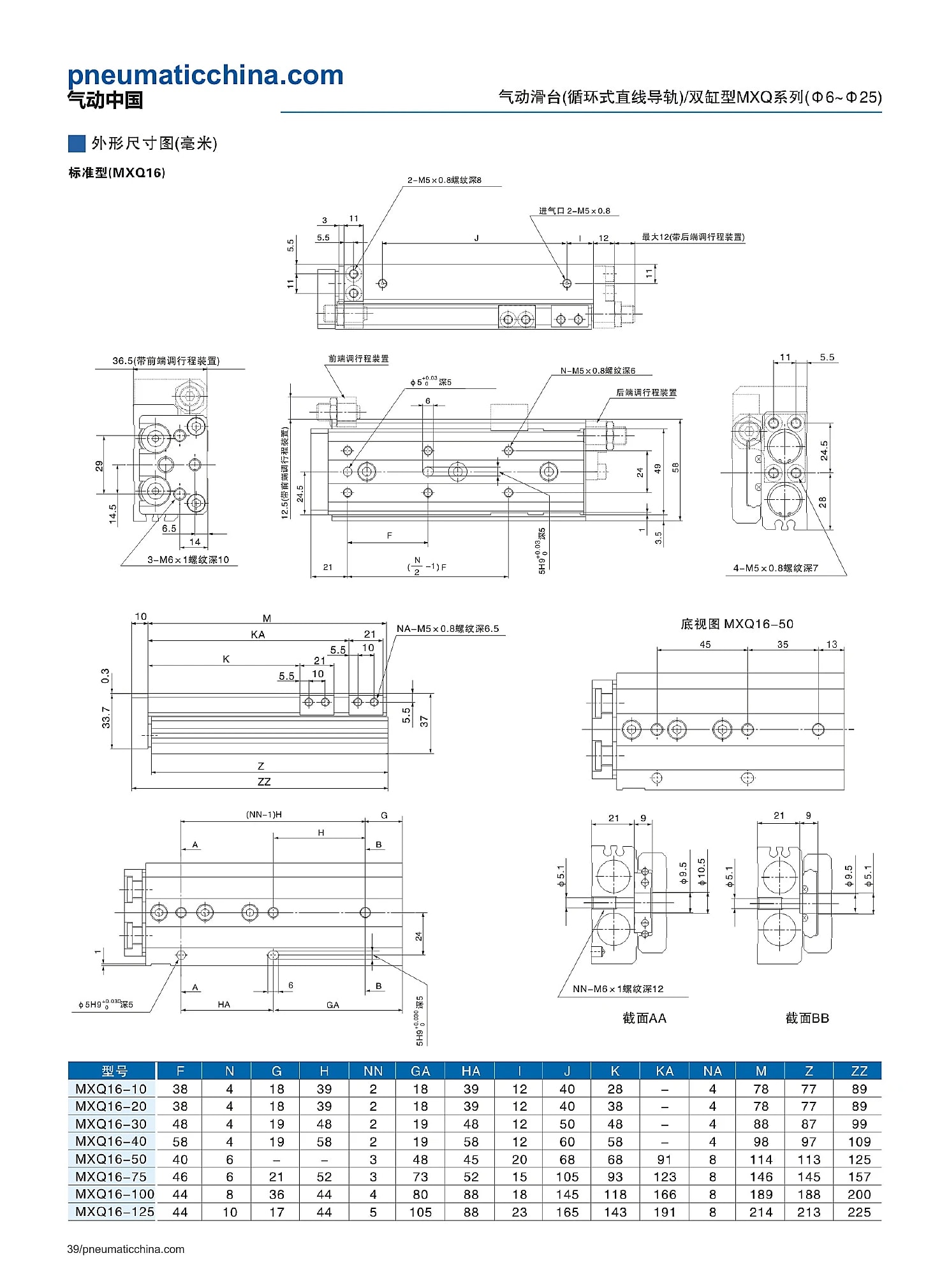

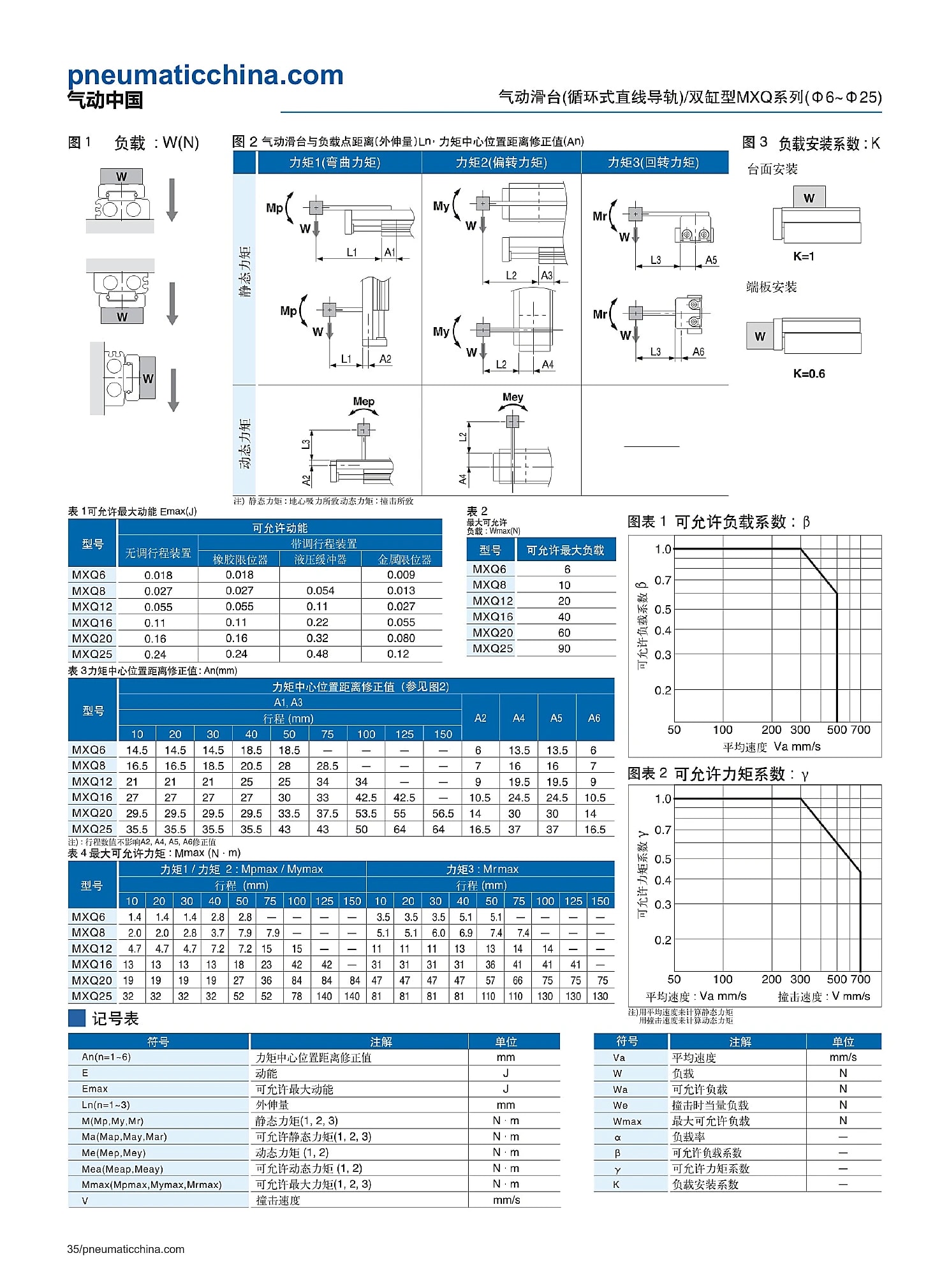

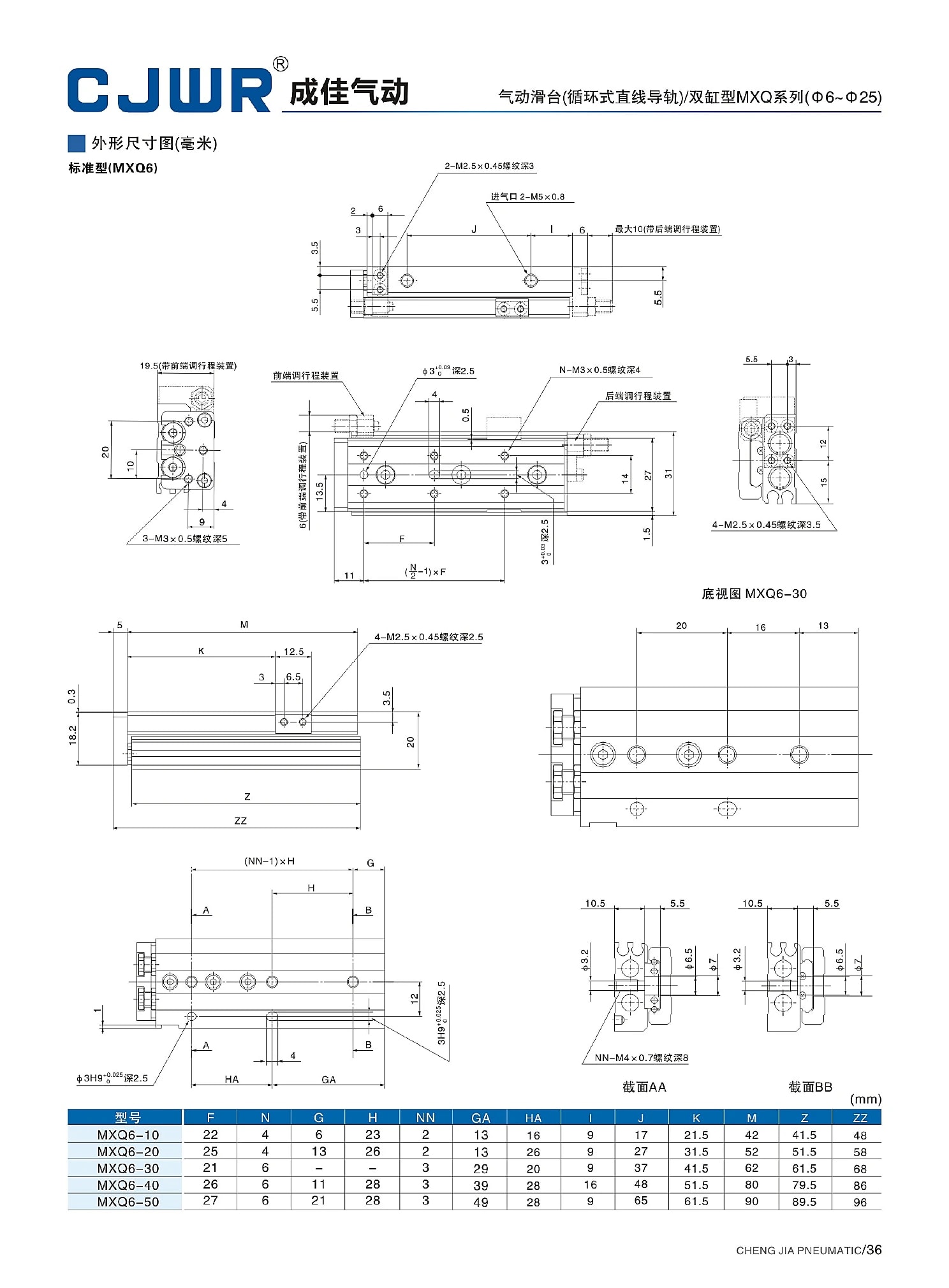

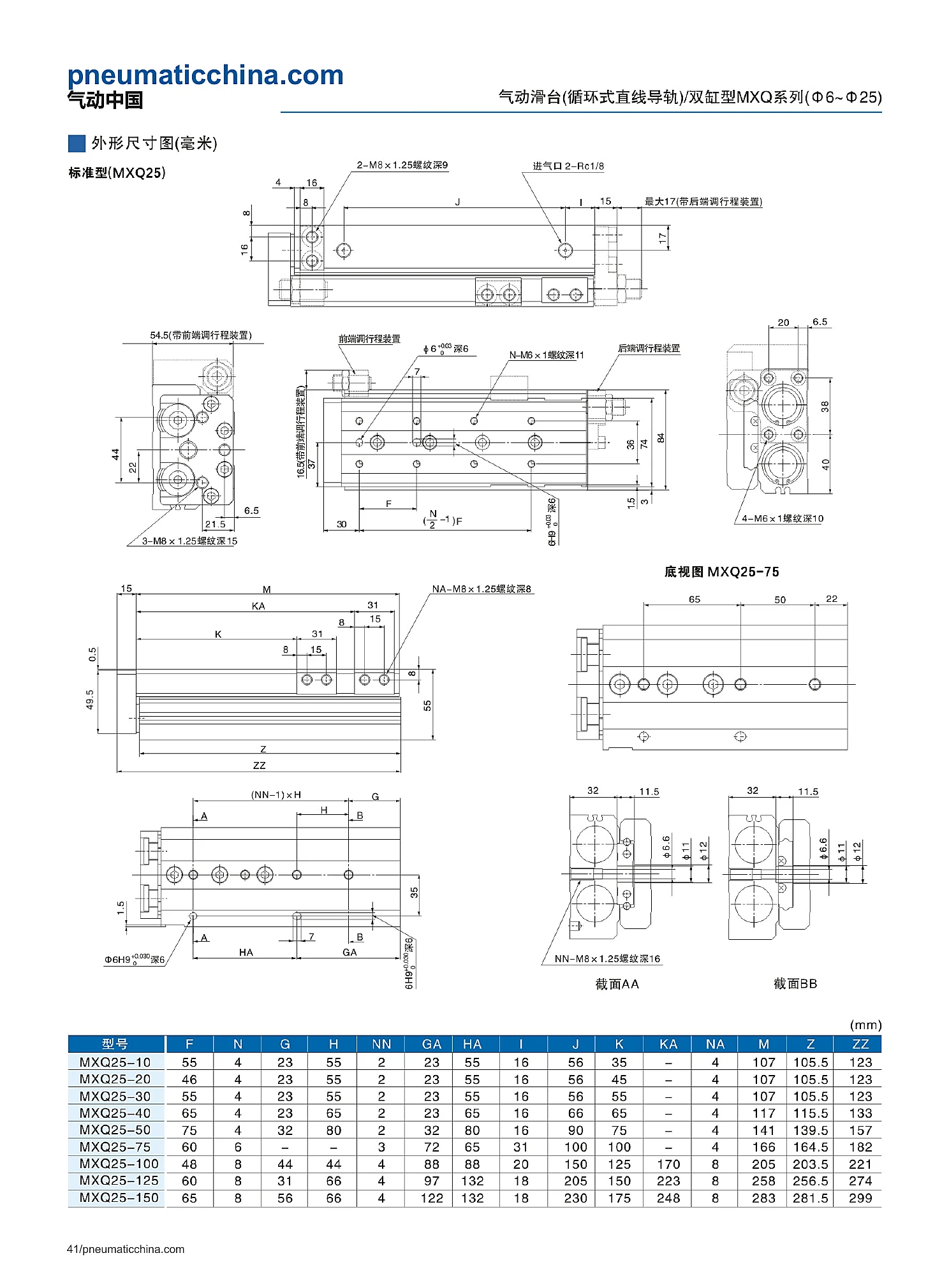

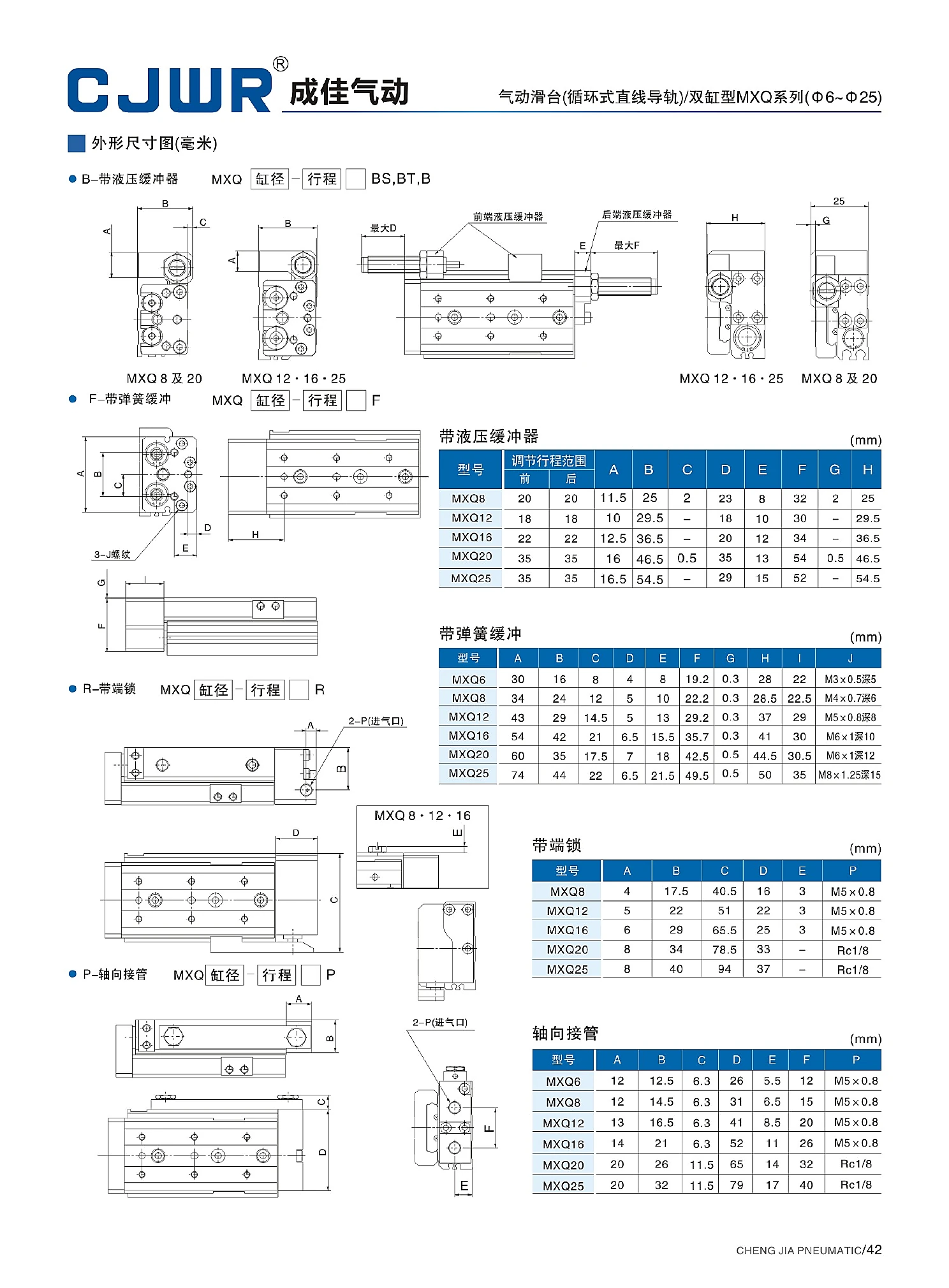

Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
System selection
A compact guided cylinder with cross-roller support for accurate linear motion and tooling guidance.
A small guided cylinder for compact transfer, positioning and assembly machinery.
A guided pneumatic cylinder for stable parallel travel in fixtures and handling mechanisms.
A guide-rod pneumatic cylinder for consistent linear movement in compact automation equipment.
