HFY
Factory-supplied line · CJWR
A Y-type pneumatic gripper for centered part handling in compact automated mechanisms.
Product overview
The HFY family uses a Y-type arrangement to support centered gripping and practical workpiece access. It is suited to compact equipment that needs a distinct finger layout.
| Gripper type | Y-type gripping |
|---|---|
| Series size range | Ø6–Ø32 |
| Actuation | Pneumatic, configuration dependent |
| Mounting | Select according to application drawing |
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details
CAD download center
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.
Complete selection data

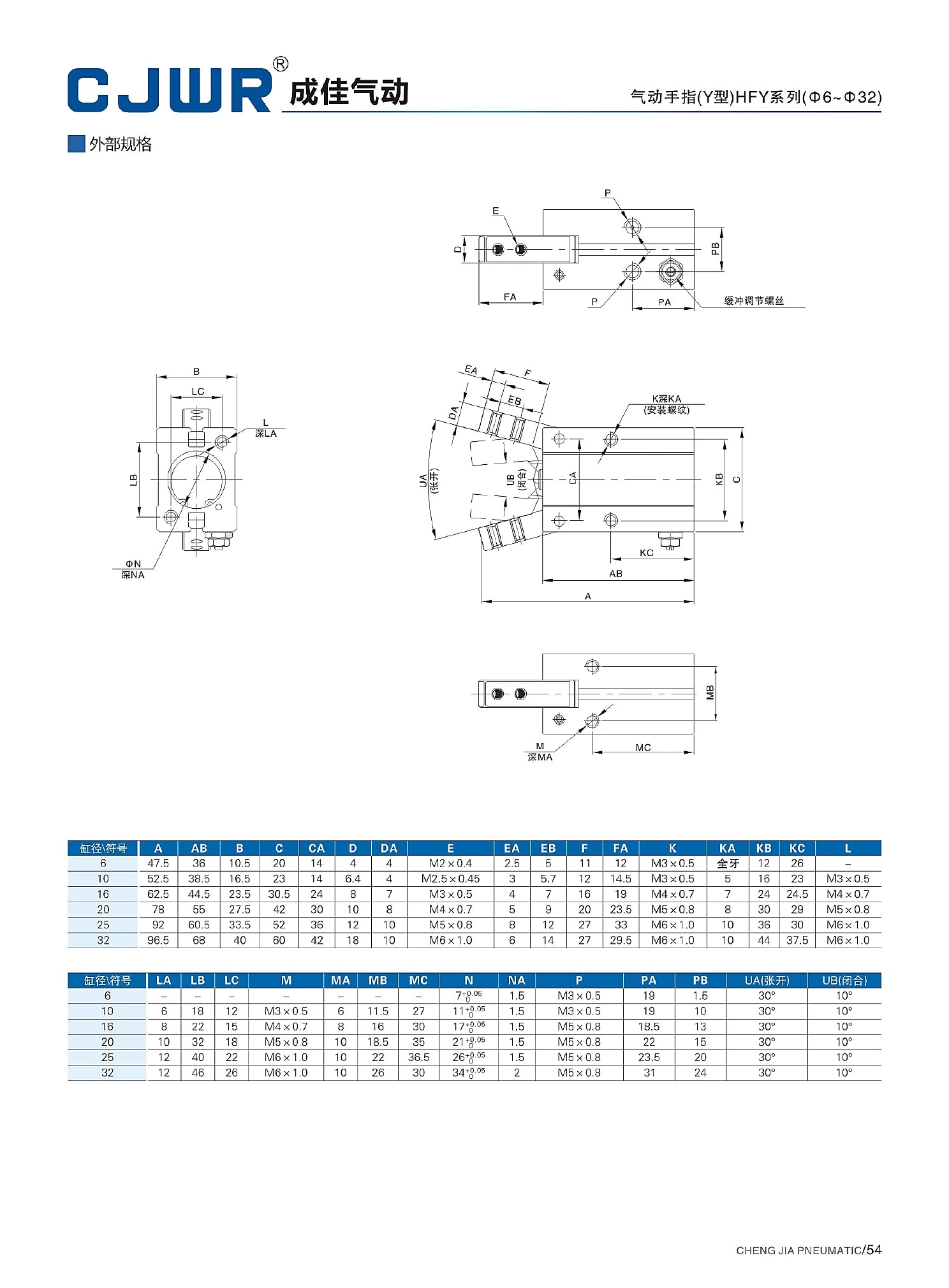

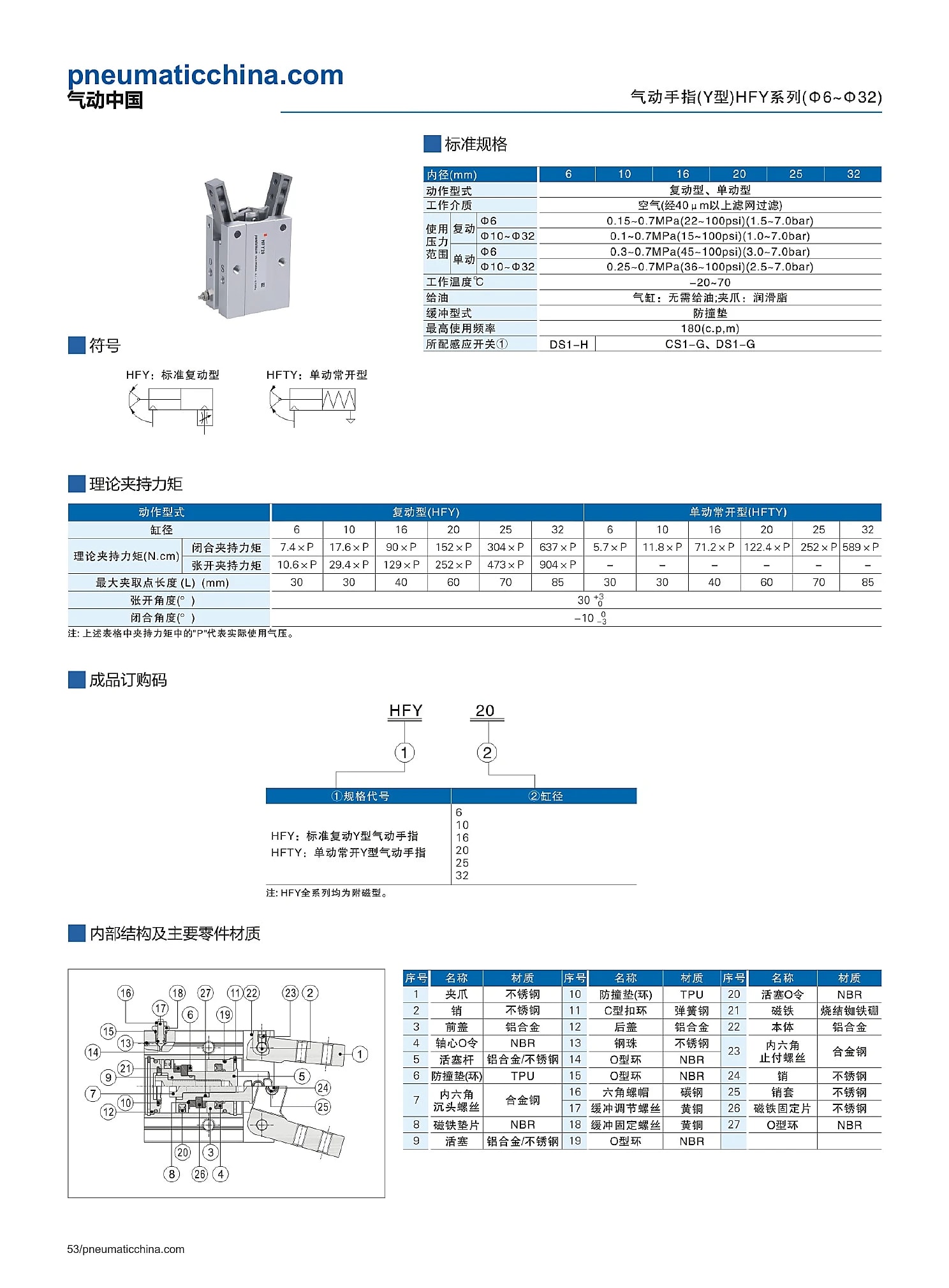

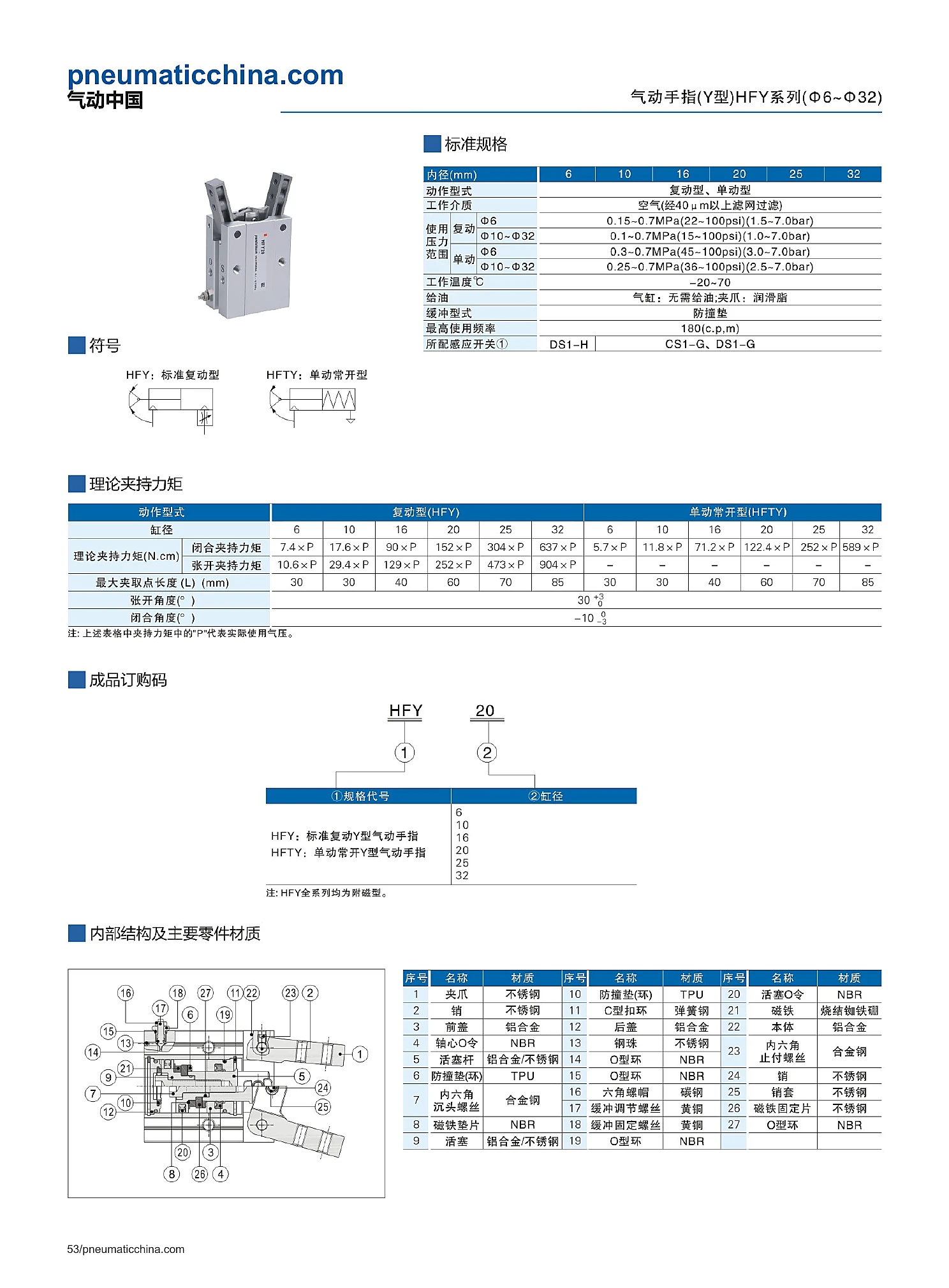

Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
Technical FAQ
Yes. Send the required model, jaw style and application details. Our team will confirm the suitable configuration and available CAD format.
