MXQ

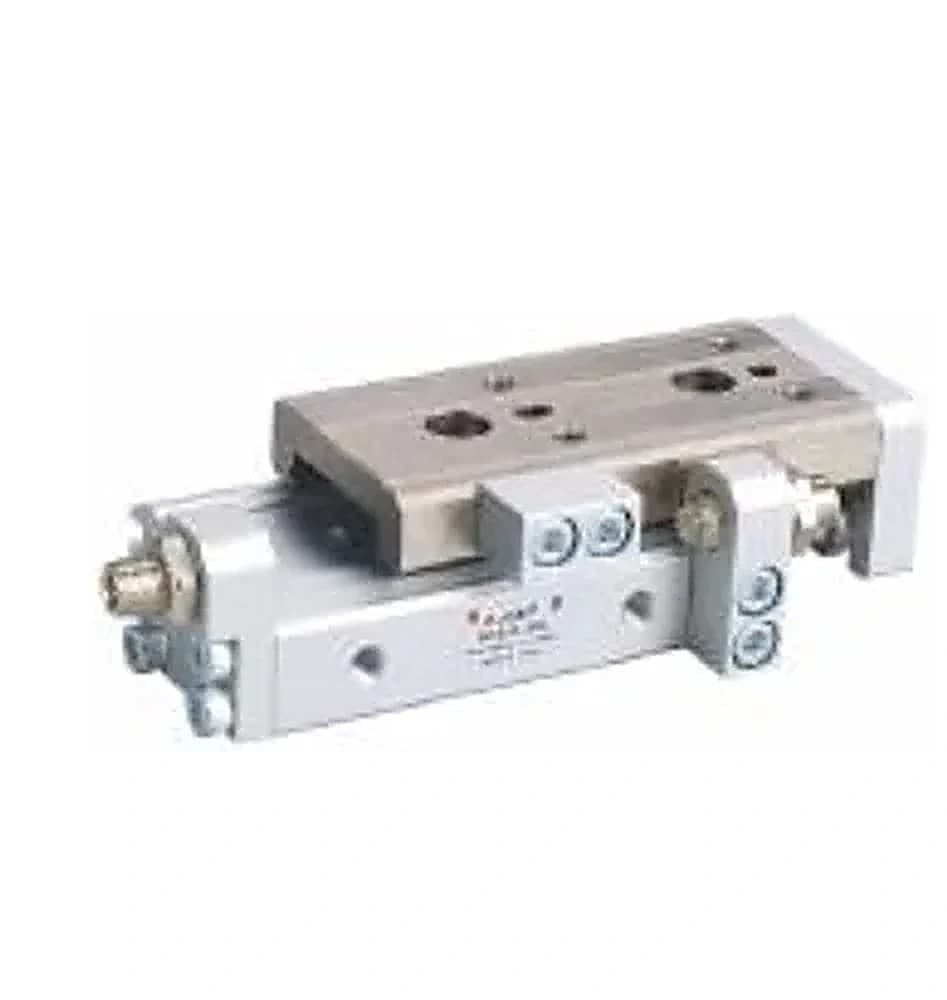

MXQ Recirculating-Ball Guided Cylinder
Verified 3D CAD model on request. Confirm the exact configuration before engineering use.
Guide design
Recirculating-ball guide
Series size range
Ø6–Ø25
Motion
Guided linear pneumatic travel
Mounting
Select according to application drawing
Model index
1 models
MXQ
mxq series
A guided cylinder with recirculating-ball support for stable, repeatable movement in automation equipment.
