MHF2 Pnömatik tutucu

Hassas elleçleme, montaj ve otomatik yükleme için kompakt pnömatik tutucu MHF2.

Teklif isteyin CAD kaynakları CAD kaynakları

Ürün önizlemesi

Kaynak görsel

Kaynak ürün görseli · onaylanmış konfigürasyon için doğrulanmış 3D CAD dosyası isteyin

Product overview

Designed for dependable machine building

The MHF2 family provides a slim gripping solution for installations where height and mounting space are limited. It is a practical choice for compact assembly equipment and small part transfer operations.

Teknik özellikler

Updated 2026-10-02

Tutucu tipi	Low-profile parallel gripping
Boy aralığı	Ø8–Ø20
Tahrik	Pneumatic, configuration dependent
Montaj	Select according to application drawing

SMC veya Festo parçası mı değiştiriyorsunuz?

Teklif öncesi montaj deseni, port dişi, strok ve sensör yuvasını doğrularız.

Uyumluluğu kontrol et

Engineering details

Features and applications

Key features

+Compact body for automated handling equipment
+Jaw and mounting options for machine integration
+Series-level CAD and drawing support on request
+Suitable for OEM and replacement sourcing projects

Typical applications

+Electronics assembly
+Small part transfer
+Compact fixtures
+Laboratory automation

CAD indirme merkezi

Select a file format

0 / 2 formats ready to download for this model · Browse the CAD library

STEPTalep üzerine

STEP 3D CAD Model

3D CAD file available on request

Dosya isteyin

PDFTalep üzerine

2D Dimension Drawing

Dimension drawing available on request

Dosya isteyin

Need a format that is not listed? Include the required file format in your RFQ.

Complete selection data

Series catalog and technical drawings

Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.

2 pages

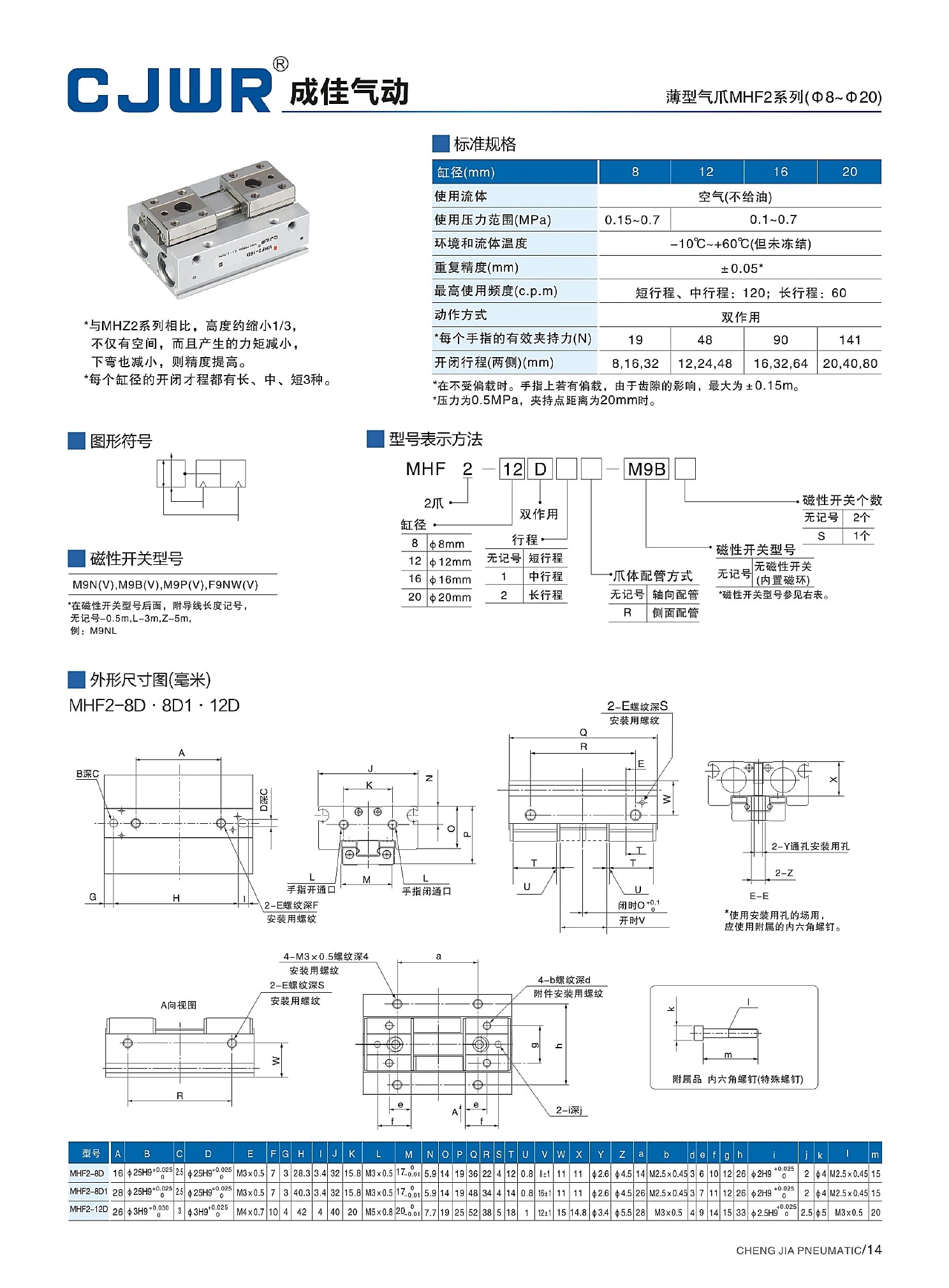

Selection data page 14 Open high-resolution page
