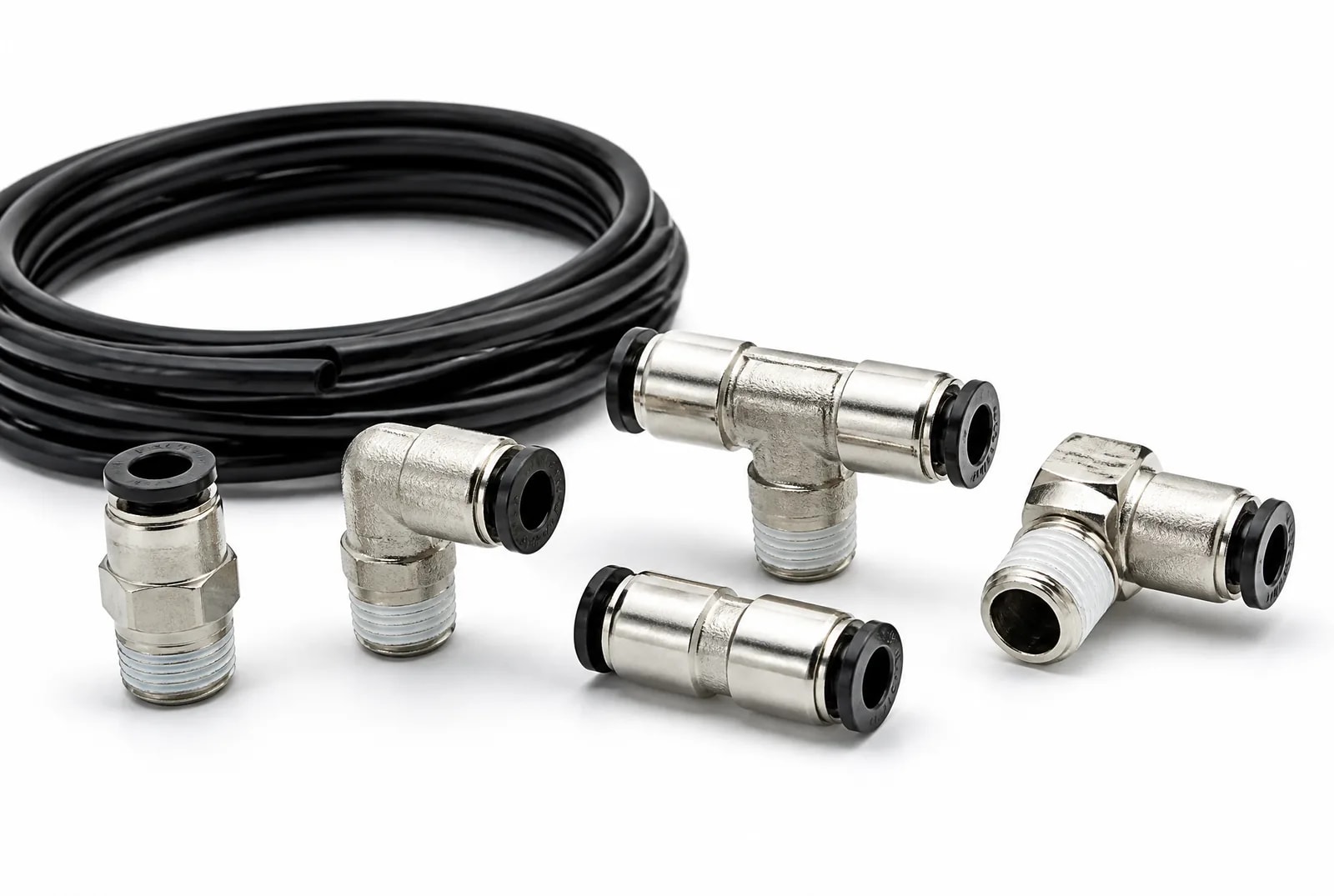

PL8-02
A 90-degree push-in fitting for 8 mm tubing and 1/4 in threads where compact routing is important.
Product overview
The PL8-02 elbow fitting helps route pneumatic tubing through tight spaces while maintaining a clean and serviceable air circuit. Its compact nickel-plated brass body is suitable for industrial automation.
| Tube outer diameter | 8 mm |
|---|---|
| Thread | G1/4 |
| Operating pressure | 0–1.0 MPa |
| Temperature | 0 to +60 °C |
| Body material | Nickel-plated brass |
Před nabídkou ověříme rozteč upevnění, závit, zdvih a drážku pro snímač.
Ověřit kompatibilituEngineering details
Centrum CAD souborů
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
Universal 3D CAD format
2D Dimension Drawing
Dimension drawing
Need a format that is not listed? Include the required file format in your RFQ.
