MXH
Factory-supplied line · CJWR
A small guided cylinder for compact transfer, positioning and assembly machinery.
Product overview
The MXH family provides a compact guided cylinder format for space-limited machine designs that need controlled linear pneumatic travel.
| Guide design | Direct guide |
|---|---|
| Series size range | Ø6–Ø20 |
| Motion | Guided linear pneumatic travel |
| Mounting | Select according to application drawing |
Před nabídkou ověříme rozteč upevnění, závit, zdvih a drážku pro snímač.
Ověřit kompatibilituEngineering details
Centrum CAD souborů
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.

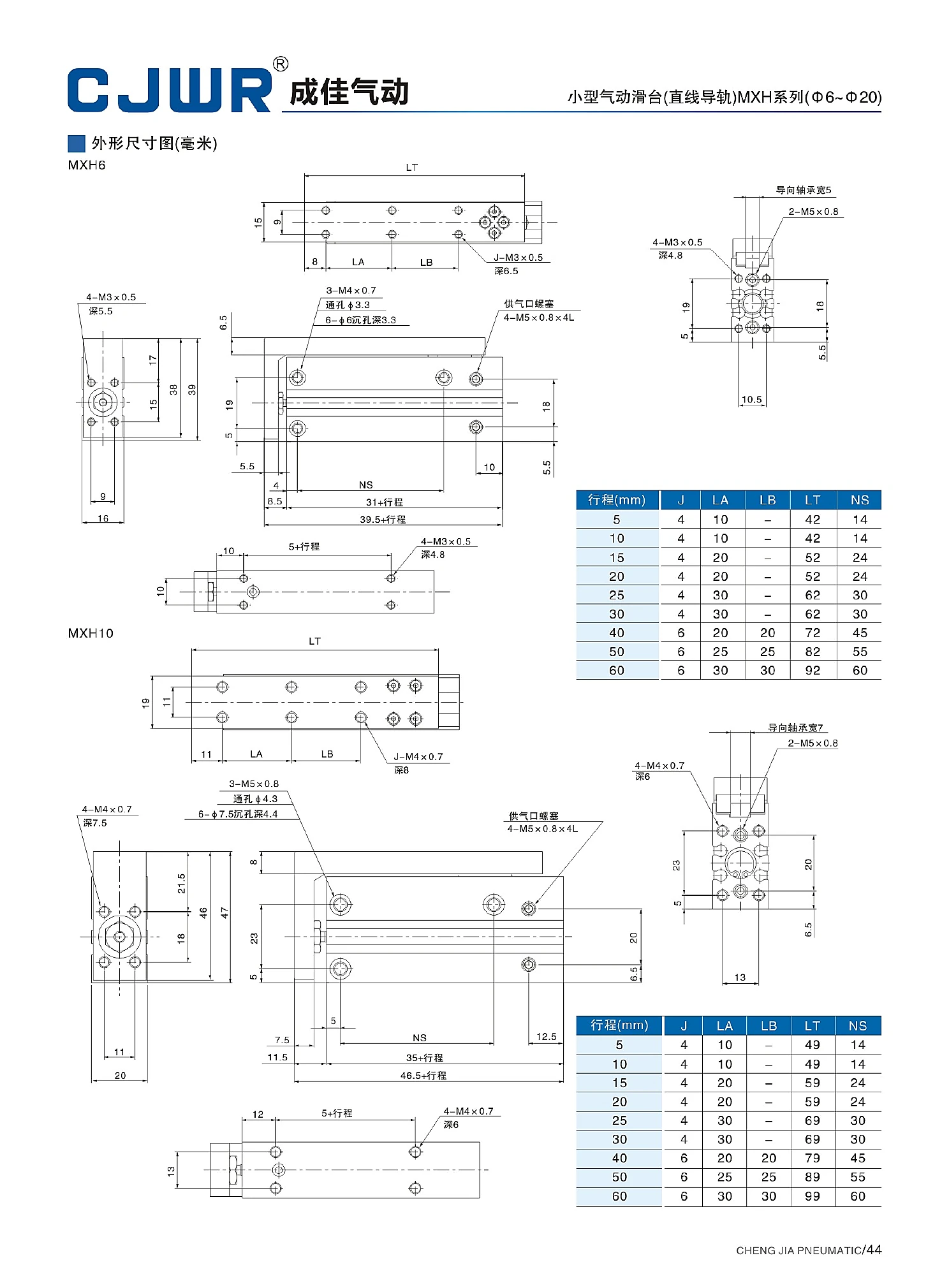

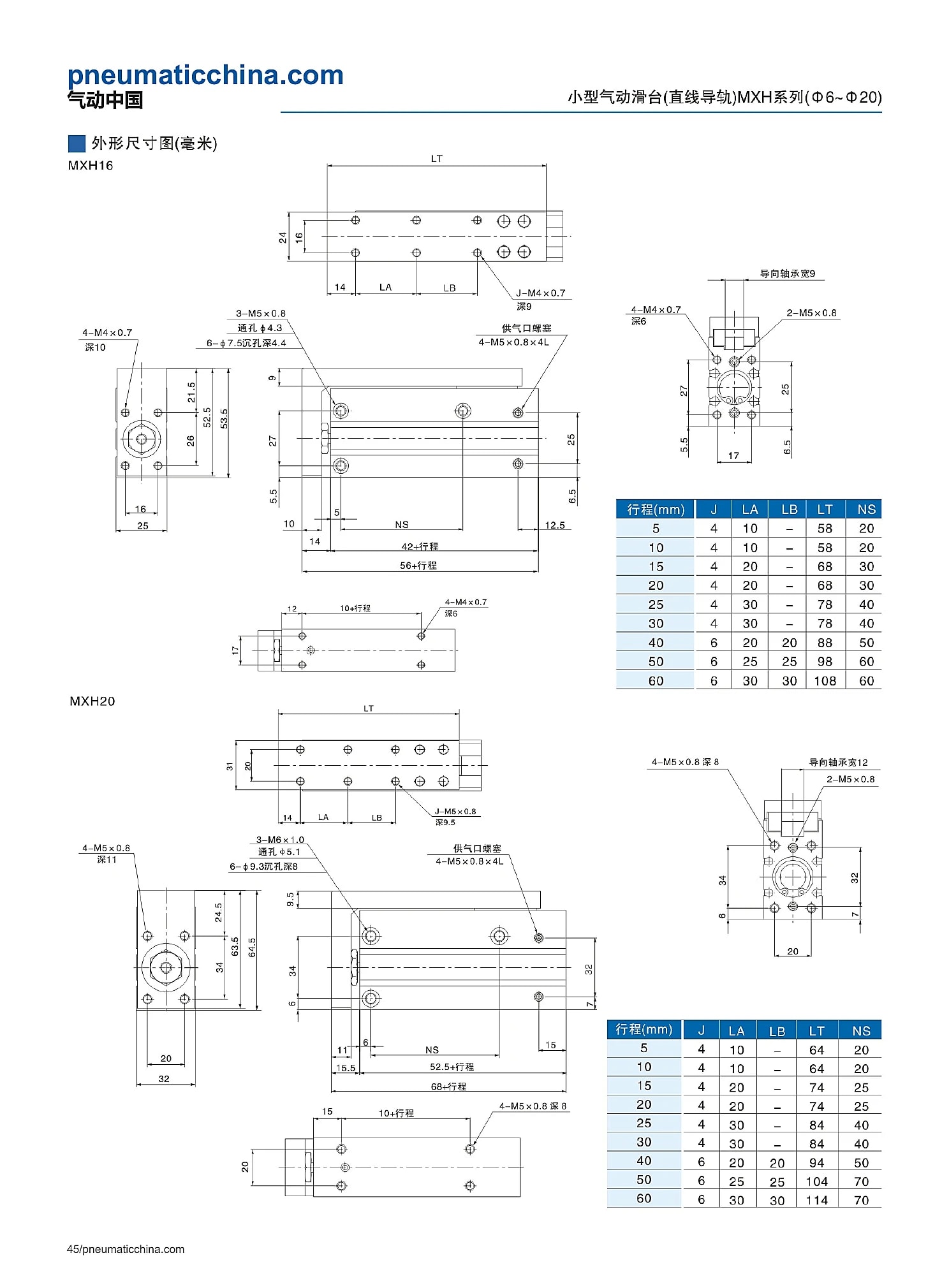

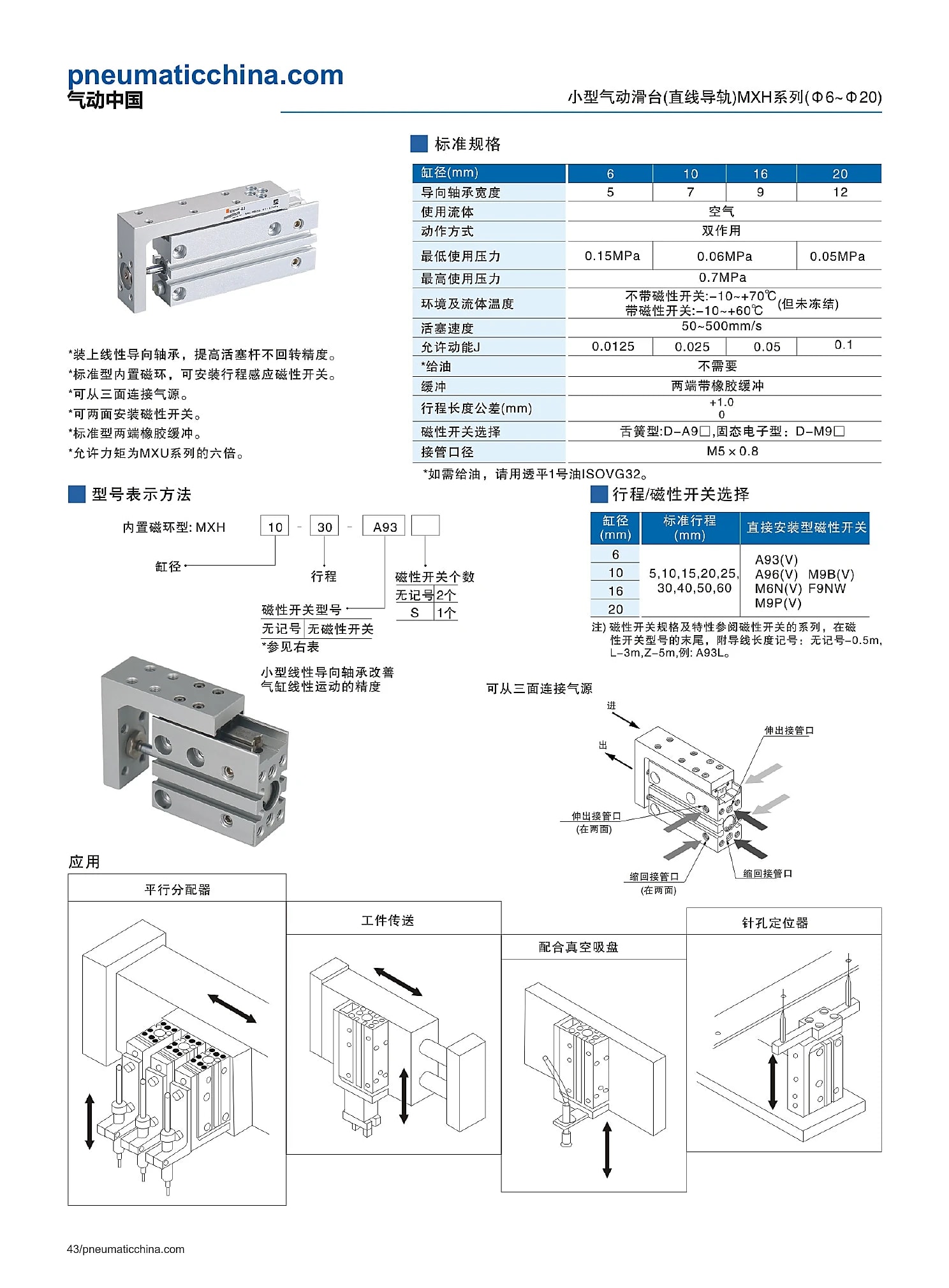

Complete selection data
Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
System selection
A compact guided cylinder with cross-roller support for accurate linear motion and tooling guidance.
A guided cylinder with recirculating-ball support for stable, repeatable movement in automation equipment.
A guided pneumatic cylinder for stable parallel travel in fixtures and handling mechanisms.
A guide-rod pneumatic cylinder for consistent linear movement in compact automation equipment.
