MHF2

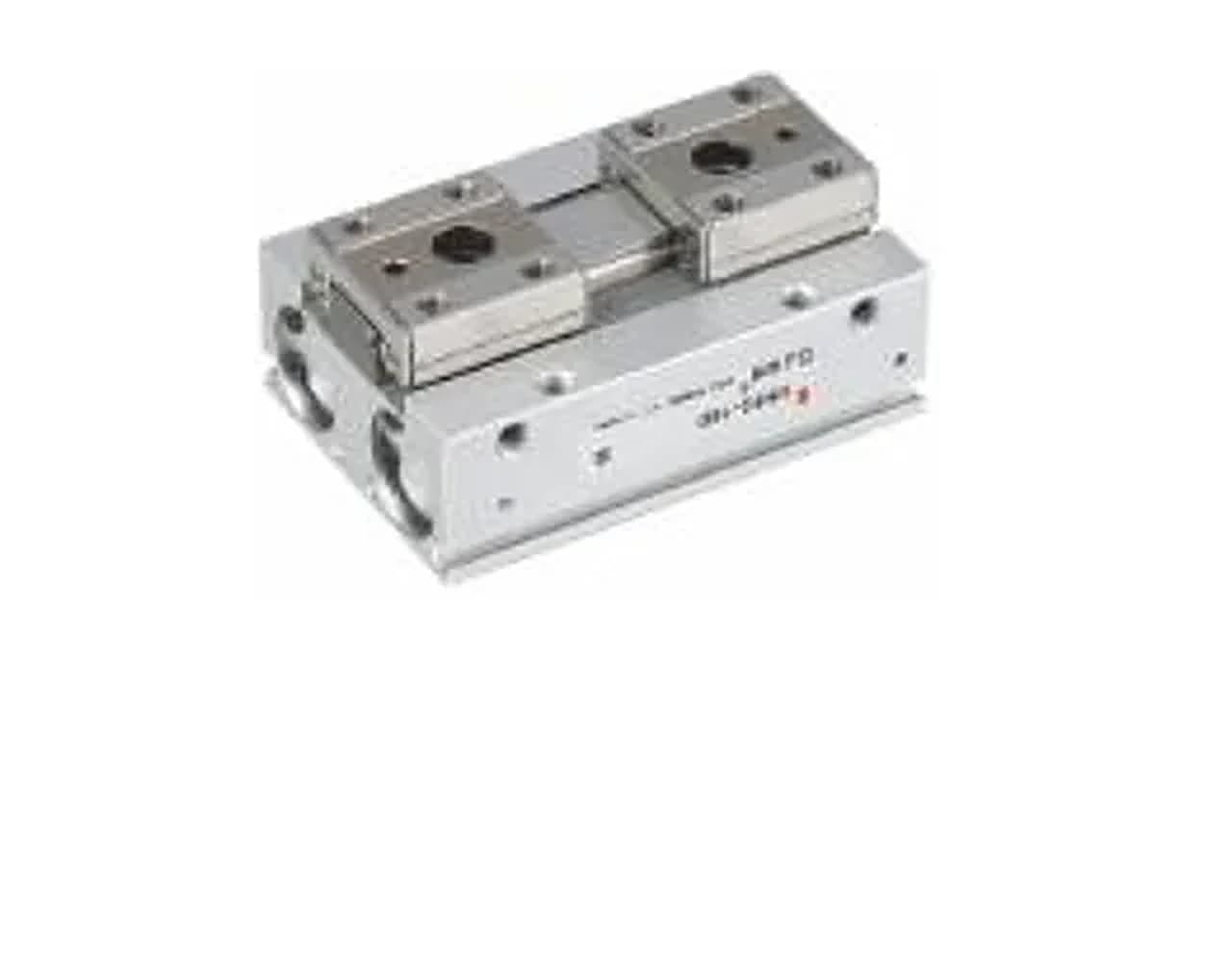

MHF2 Low-Profile Pneumatic Gripper
Verified 3D CAD model on request. Confirm the exact configuration before engineering use.
Gripper type
Low-profile parallel gripping
Series size range
Ø8–Ø20
Actuation
Pneumatic, configuration dependent
Mounting
Select according to application drawing
Model index
1 models
MHF2
mhf2 series
A low-profile pneumatic gripper for restricted machine spaces and lightweight automated handling.
